Dimension Drawings
C.1 Dimension drawings 3RR2 monitoring relay
3UG4 / 3RR2 monitoring relays
376 Manual, 05/2016, NEB927043002000/RS-AC/004
3RR2.41-2A.30 (spring-loaded connection, S00)

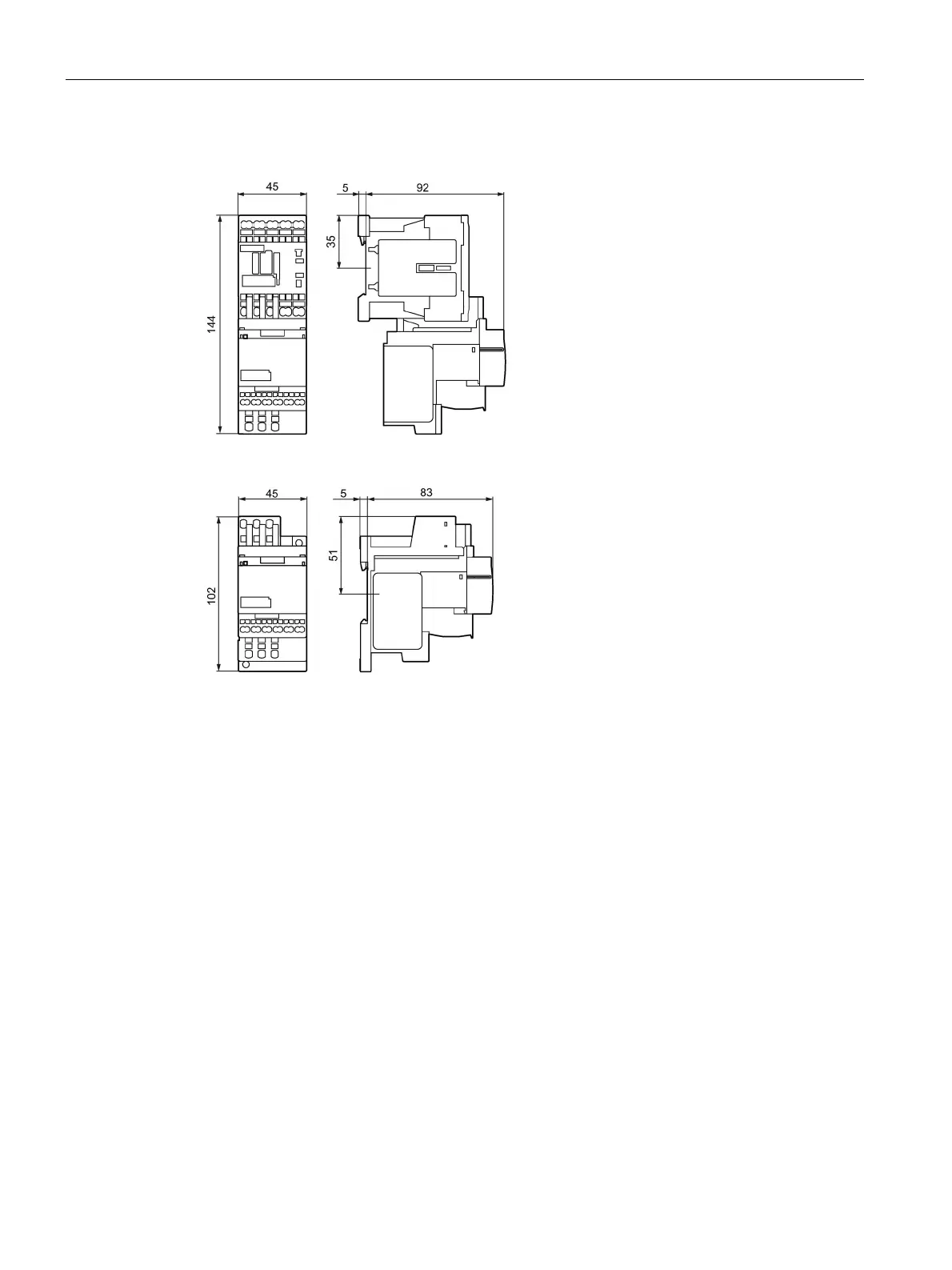

Image C-3 3RR2.41-2A.30 with contactor
Image C-4 3RR2.41-2A.30 with terminal support for stand-alone assembly
