Dimension Drawings
C.1 Dimension drawings 3RR2 monitoring relay
3UG4 / 3RR2 monitoring relays
Manual, 05/2016, NEB927043002000/RS-AC/004
377
3RR2.42-1A.30 (screw connection, S0)

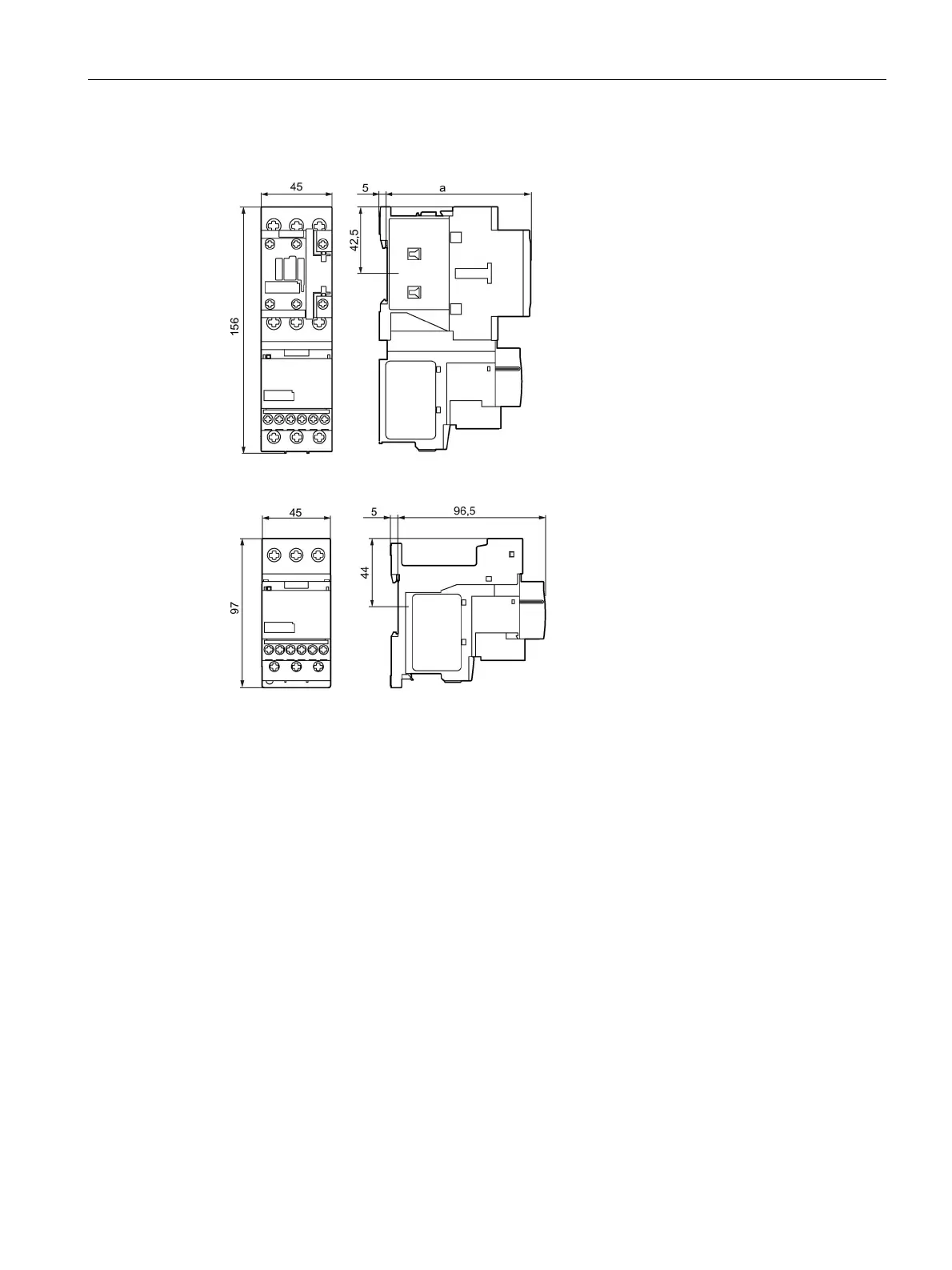

Image C-5 3RR2.42-1A.30 with contactor
Image C-6 3RR2.42-1A.30 with terminal support for stand-alone assembly
