Dimension Drawings
C.1 Dimension drawings 3RR2 monitoring relay
3UG4 / 3RR2 monitoring relays
378 Manual, 05/2016, NEB927043002000/RS-AC/004

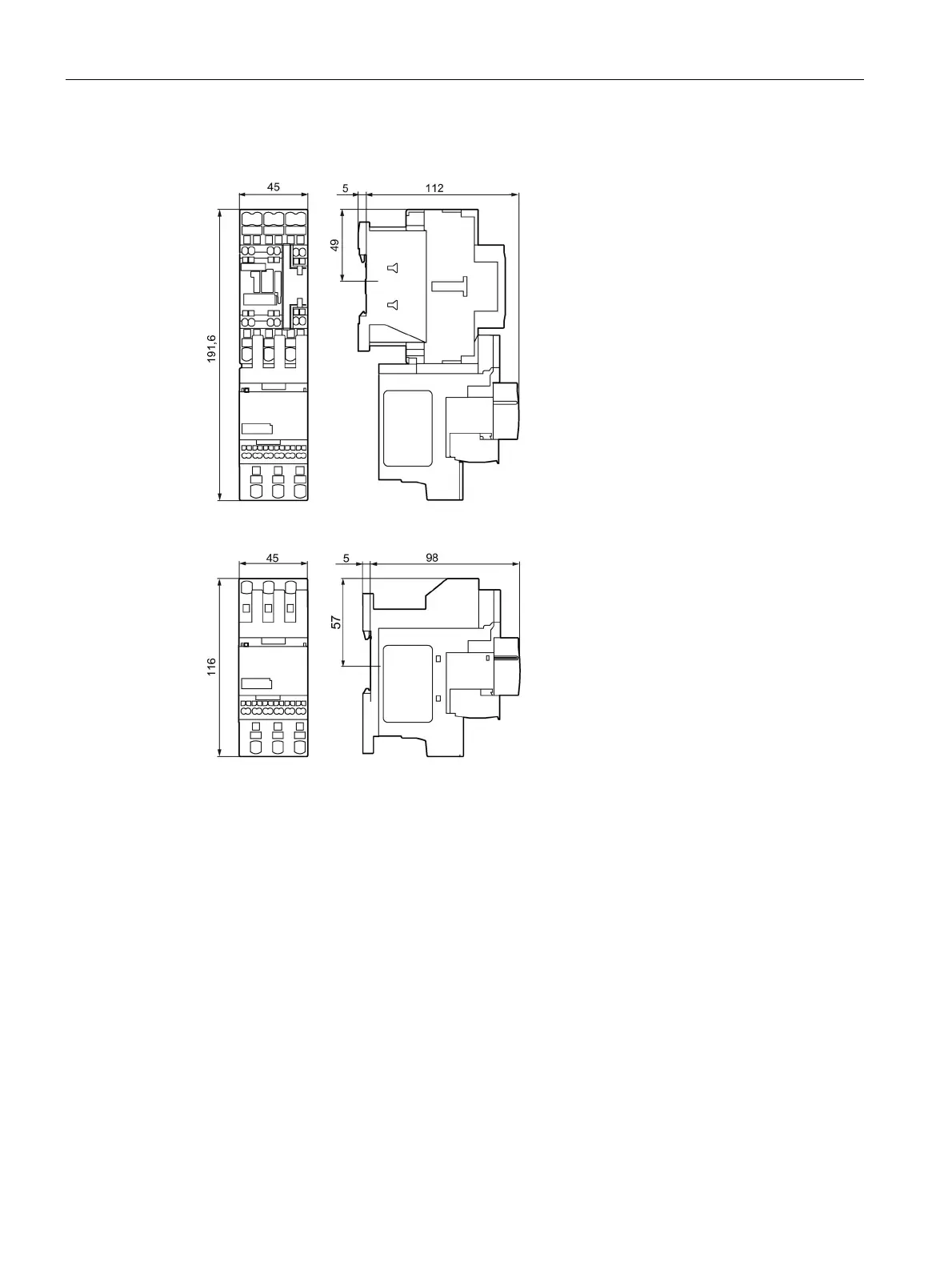

3RR2.42-2A.30 (spring-loaded connection, S0)
Image C-7 3RR2.42-2A.30 with contactor
Image C-8 3RR2.42-2A.30 with terminal support for stand-alone assembly
