Dimension Drawings
C.1 Dimension drawings 3RR2 monitoring relay
3UG4 / 3RR2 monitoring relays
Manual, 05/2016, NEB927043002000/RS-AC/004
379
3RR2143-1A.30 (S2)

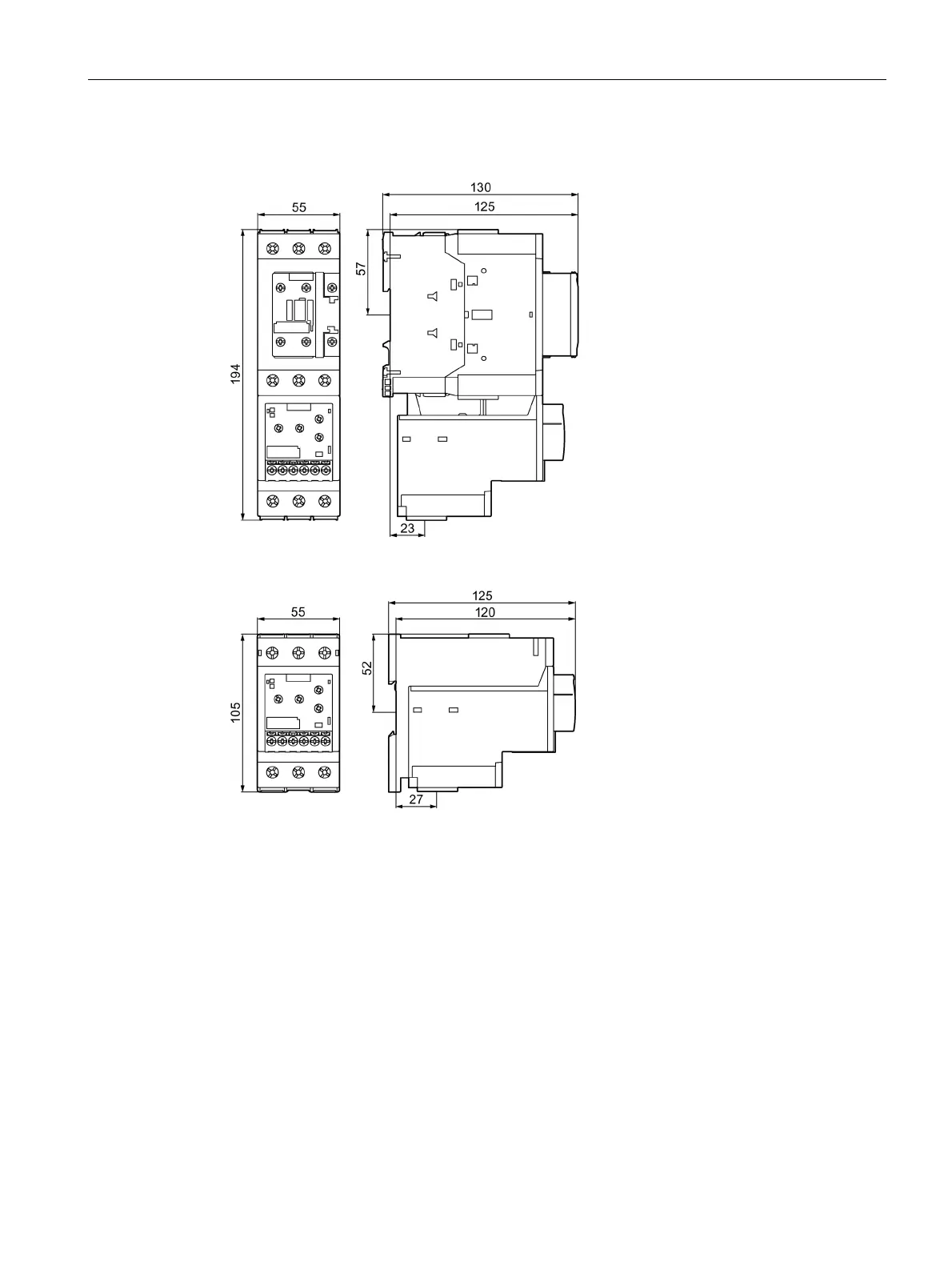

Image C-9 3RR2143-1A.30 with contactor
Image C-10 3RR2143-1A.30 with terminal support for stand-alone assembly
