Dimension Drawings
C.2 Dimension drawings 3UG4 monitoring relays
3UG4 / 3RR2 monitoring relays
Manual, 05/2016, NEB927043002000/RS-AC/004
385
C.2.3
Dimension drawings 3UG4 monitoring relays. (4 connecting terminals)
3UG4. monitoring relays with 4 connecting terminals (screw-type connection)

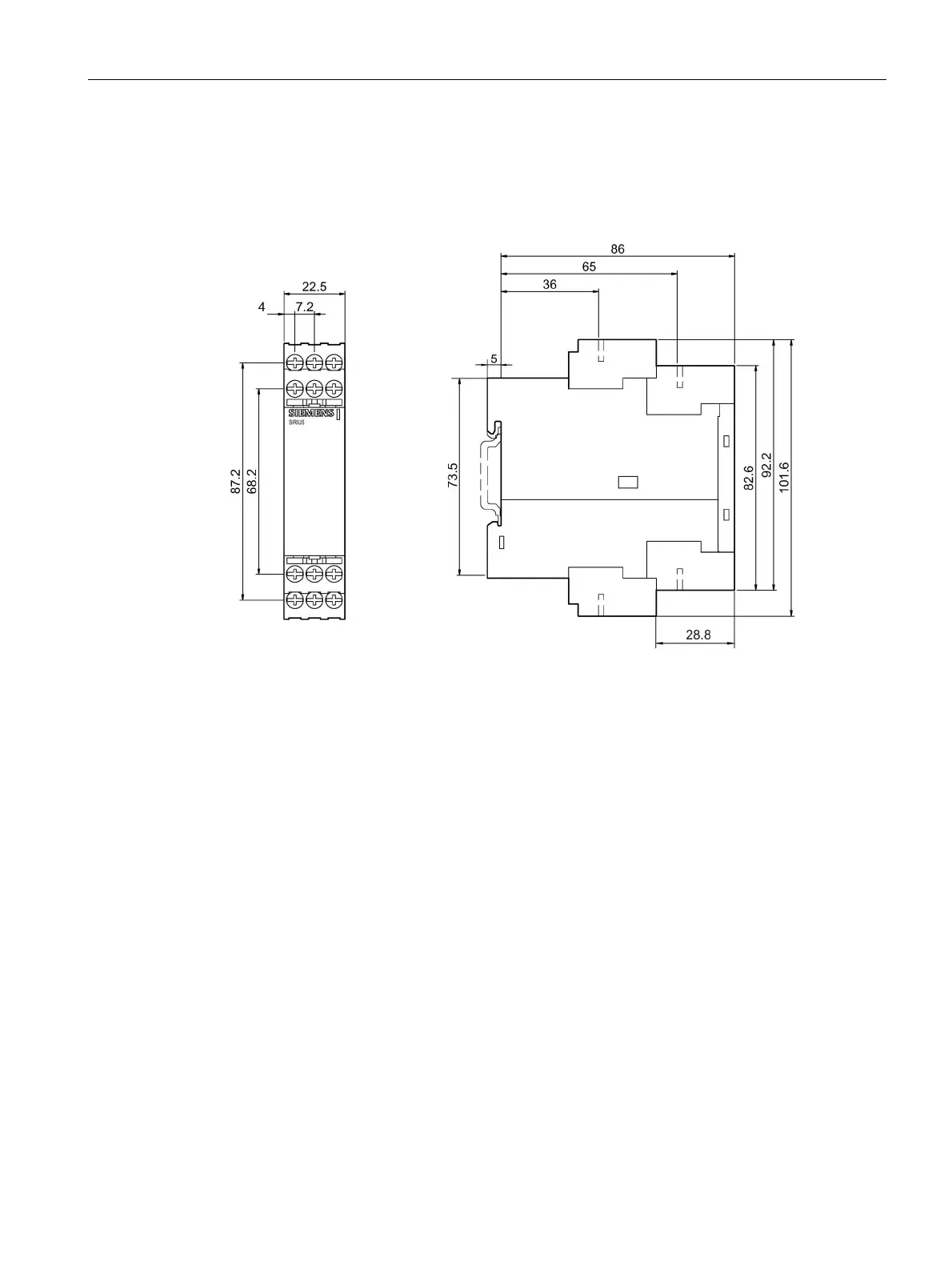

Image C-21 3UG4. monitoring relays with 4 connecting terminals with screw-type connections
