3UG4.1 line monitoring relay
6.6 3UG4615 / 3UG4616 line monitoring relays
3UG4 / 3RR2 monitoring relays
150 Manual, 05/2016, NEB927043002000/RS-AC/004
Circuit diagrams

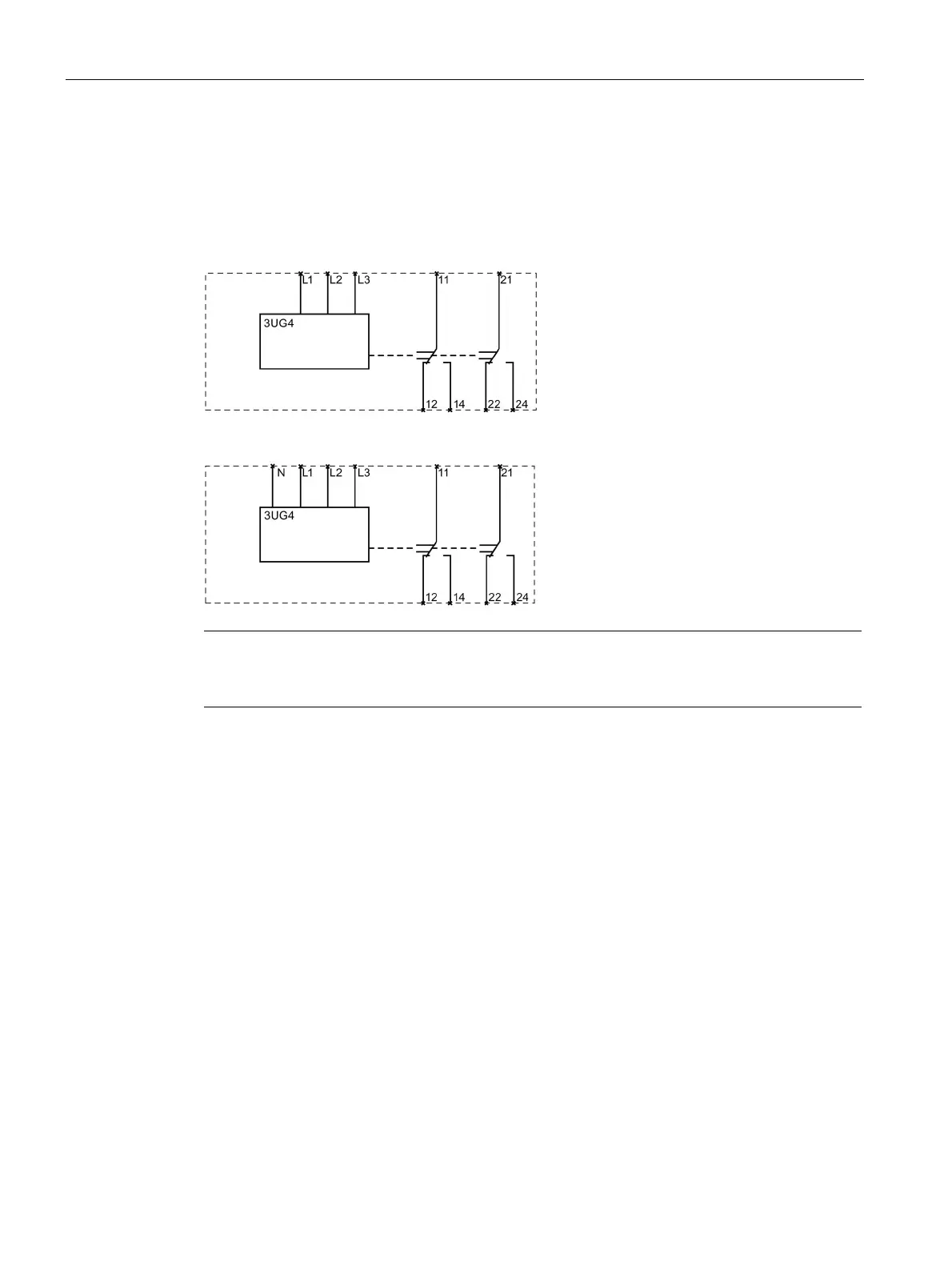

Internal circuit diagrams 3UG4615 / 3UG4616
3UG4615 line monitoring relay
3UG4616 line monitoring relay
Note
It is not necessary to fuse the measuring circuit to protect the device. Fusing for line
protection depends on the cross
-section used.
