Dimension Drawings
C.2 Dimension drawings 3UG4 monitoring relays
3UG4 / 3RR2 monitoring relays
386 Manual, 05/2016, NEB927043002000/RS-AC/004
3UG4. monitoring relays with 4 connecting terminals (spring-loaded connections)

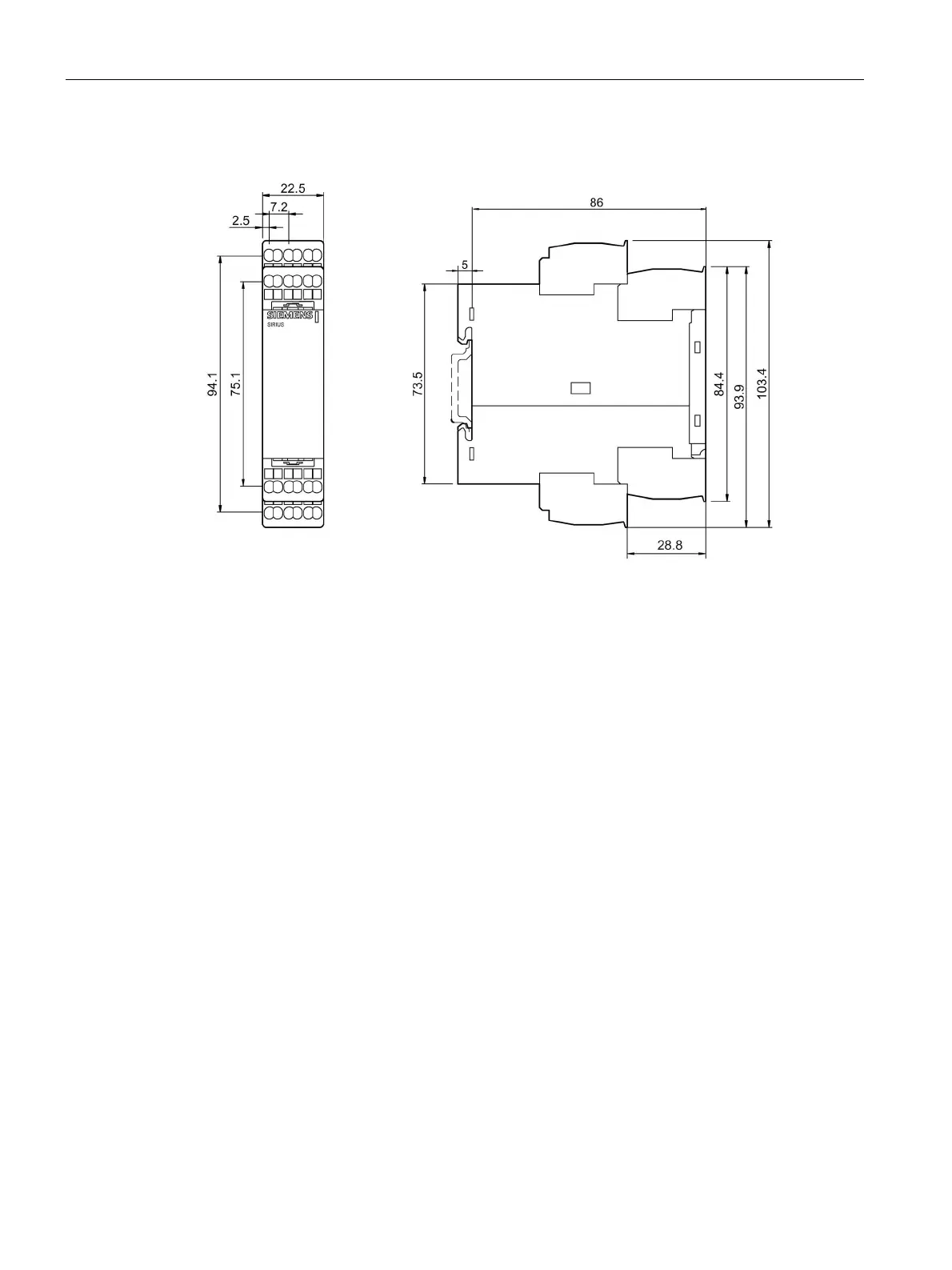

Image C-22 3UG4. monitoring relays with 4 connecting terminals with spring-loaded connections
