3UG458. insulation monitoring relay
9.3 3UG4581 insulation monitoring relay
3UG4 / 3RR2 monitoring relays
Manual, 05/2016, NEB927043002000/RS-AC/004
223

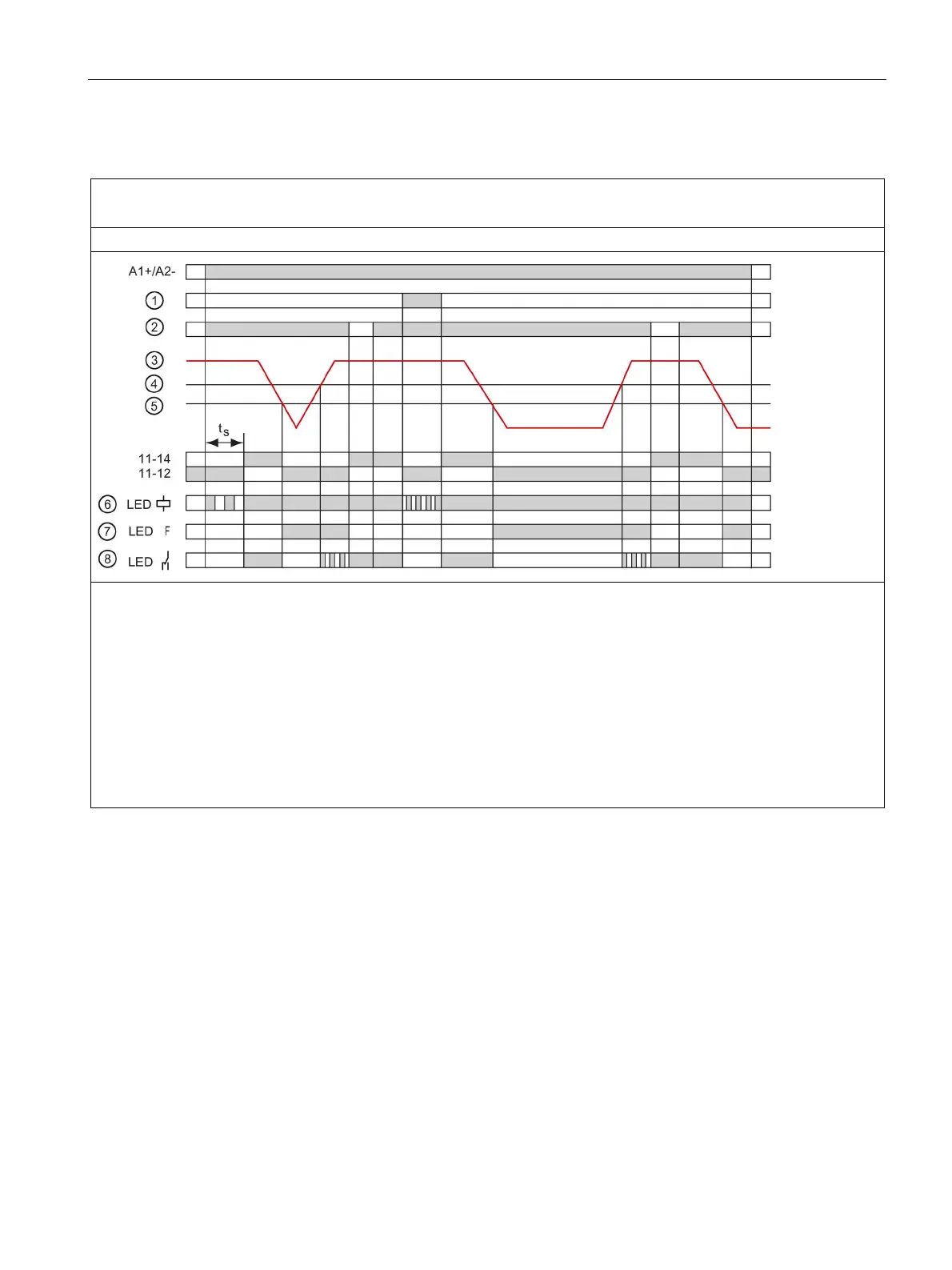

Relay switching behavior = NC
(closed-circuit principle)
With fault storage, manual RESET
Test (Y1-Y3)
② Reset (Y2-Y3)
③ Measured value
④ Hysteresis
⑤ Threshold
⑥ Green
⑦ Red
⑧ Yellow
t
S
= Time for internal device test after applying the supply voltage
