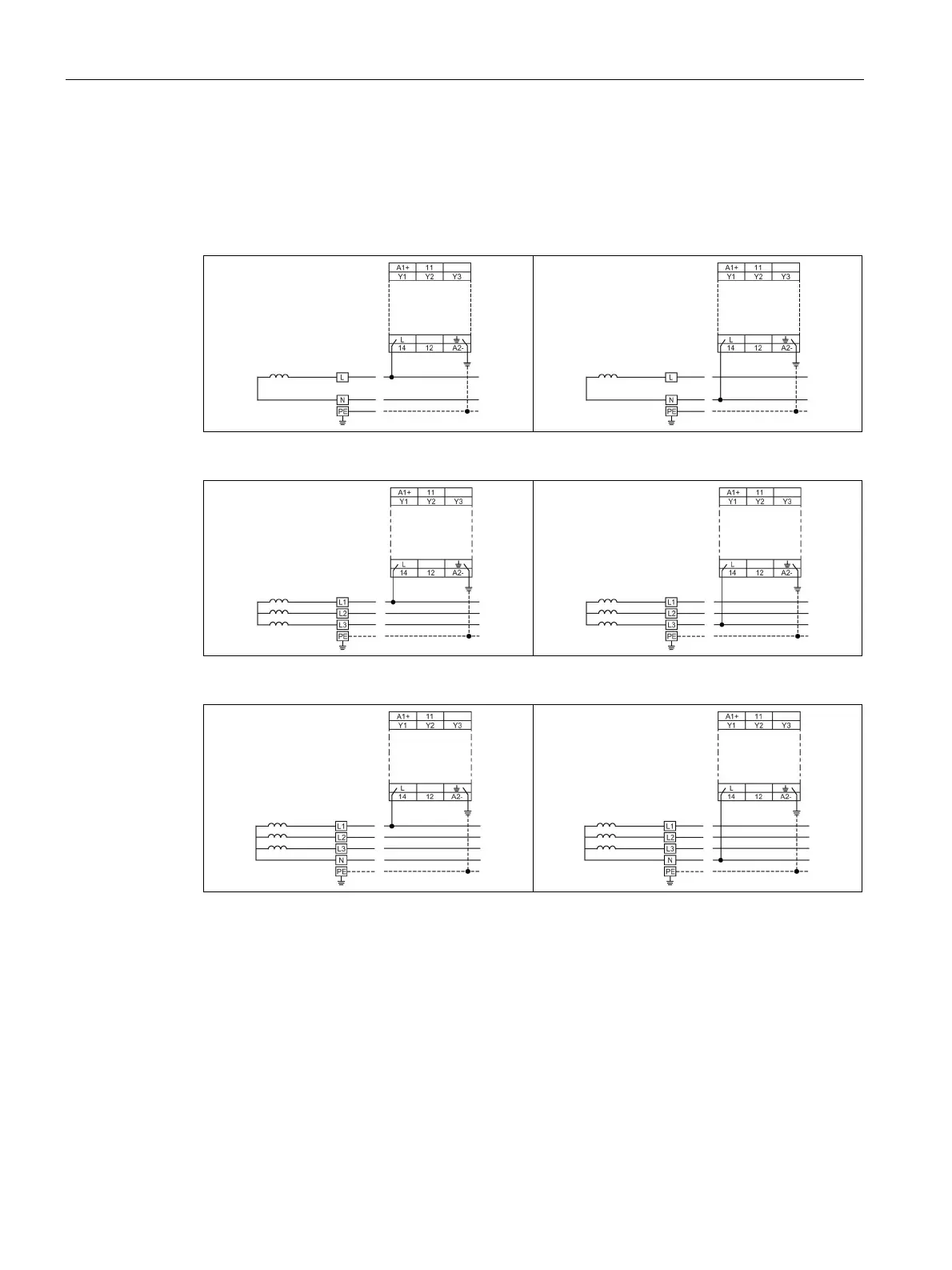

Wiring examples 3UG4581 insulation monitoring relays
Measuring input L can be connected to any conductor (phase or N conductor). The rated
system voltage must be U
n
≤ 400 V AC (50 to 60 Hz).
2-wire AC system
3-wire AC system
4-wire AC system
