3UG458. insulation monitoring relay
9.4 3UG4582/3UG4583 insulation monitoring relays
3UG4 / 3RR2 monitoring relays
Manual, 05/2016, NEB927043002000/RS-AC/004
263
Characteristics of the 3UG4583 insulation monitoring relays

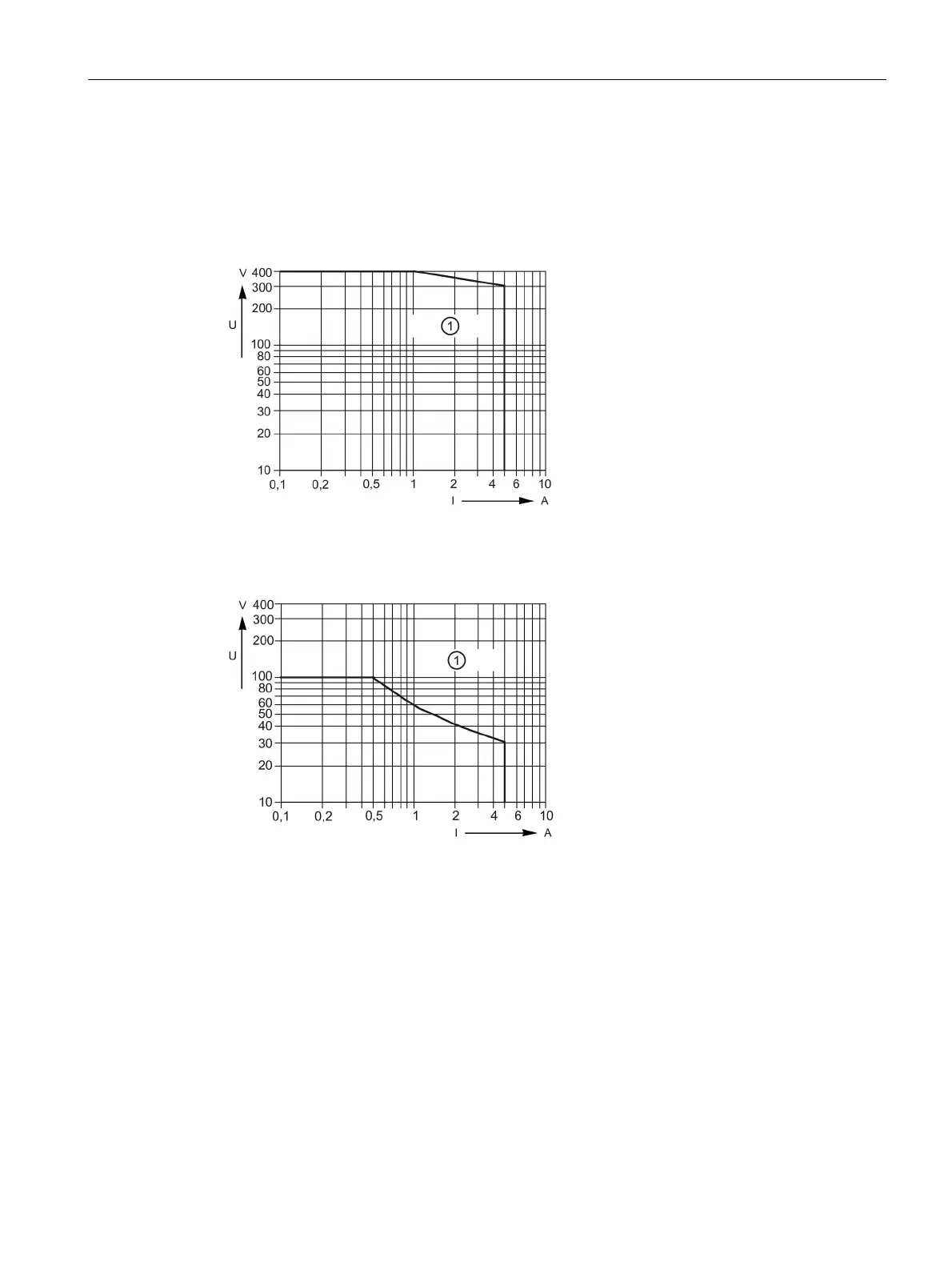

The characteristics below show the load limit curves of the 3UG4583 insulation monitoring
relays.
Image 9-16 AC load (resistive)
Image 9-17 DC load (resistive)
