Accessories
13.3 Accessories for 3UG458. insulation monitoring relays.
3UG4 / 3RR2 monitoring relays
356 Manual, 05/2016, NEB927043002000/RS-AC/004

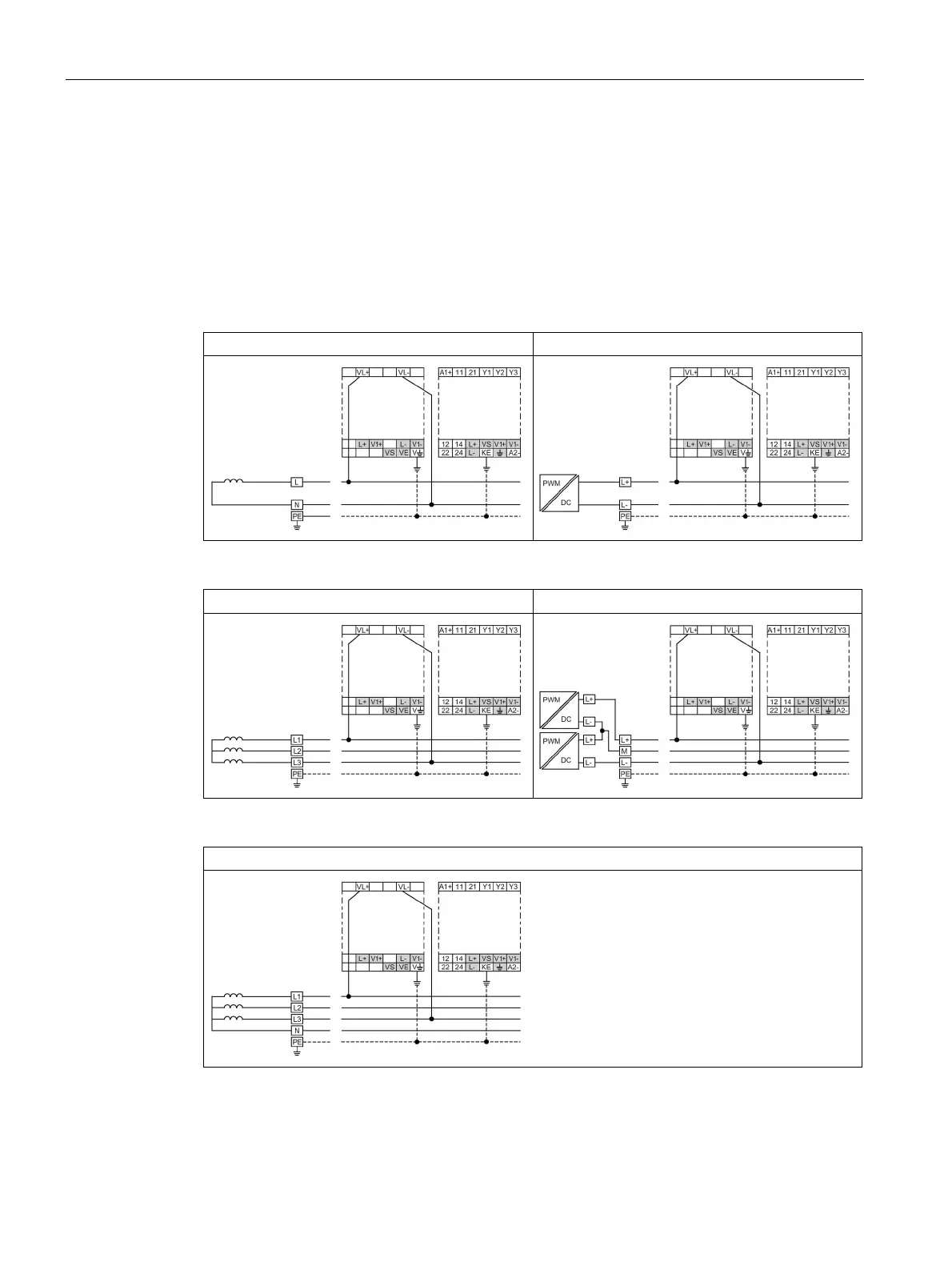

Wiring examples for the 3UG4583 insulation monitoring relay with connected 3UG4983 upstream
module
Measuring inputs L+ and L- can be connected to any conductor. Measuring inputs L+ and L-
must always be connected to different conductors.
The rated system voltage is U
n
≤ 690 V AC (15 to 400 Hz) or U
n
≤ 1000 V DC.
2-wire AC system
/
2-wire DC system
2-wire AC system 2-wire DC system
3-wire AC system
/
3-wire DC system
3-wire AC system 3-wire DC system
4-wire AC system
4-wire AC system
