Dimension Drawings
C.1 Dimension drawings 3RR2 monitoring relay
3UG4 / 3RR2 monitoring relays
Manual, 05/2016, NEB927043002000/RS-AC/004
381

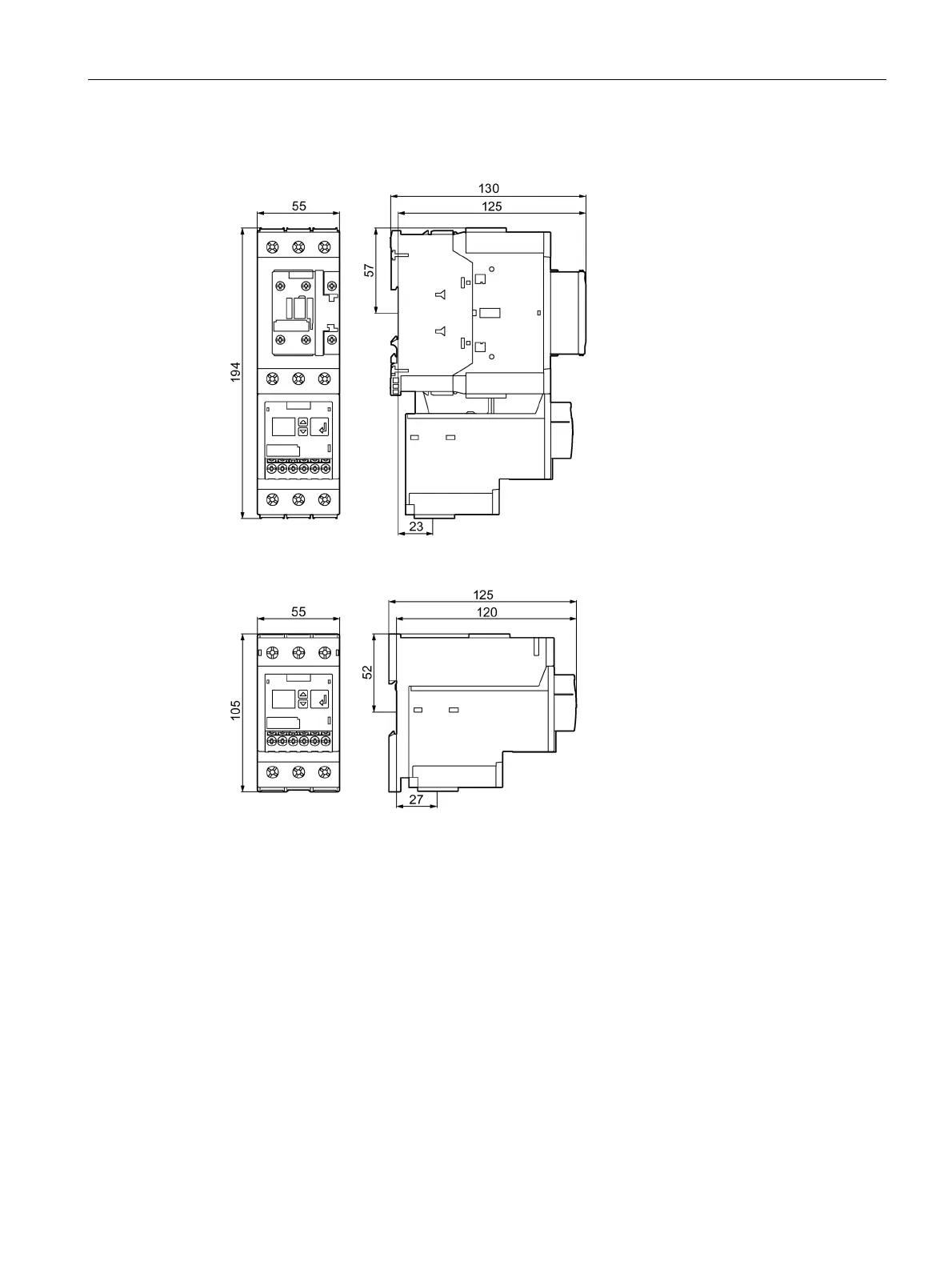

3RR2243-1F.30 (S2)
Image C-13 3RR2243-1F.30 with contactor
Image C-14 3RR2243-1F.30 with terminal support for stand-alone assembly
