6. Save the selection by pressing the M pushbutton.
Note
If the input pressure is selected for display in mode 13 and the square root
characteristic in mode 11, the differential pressure corresponding to the flow and
the root sign are displayed.

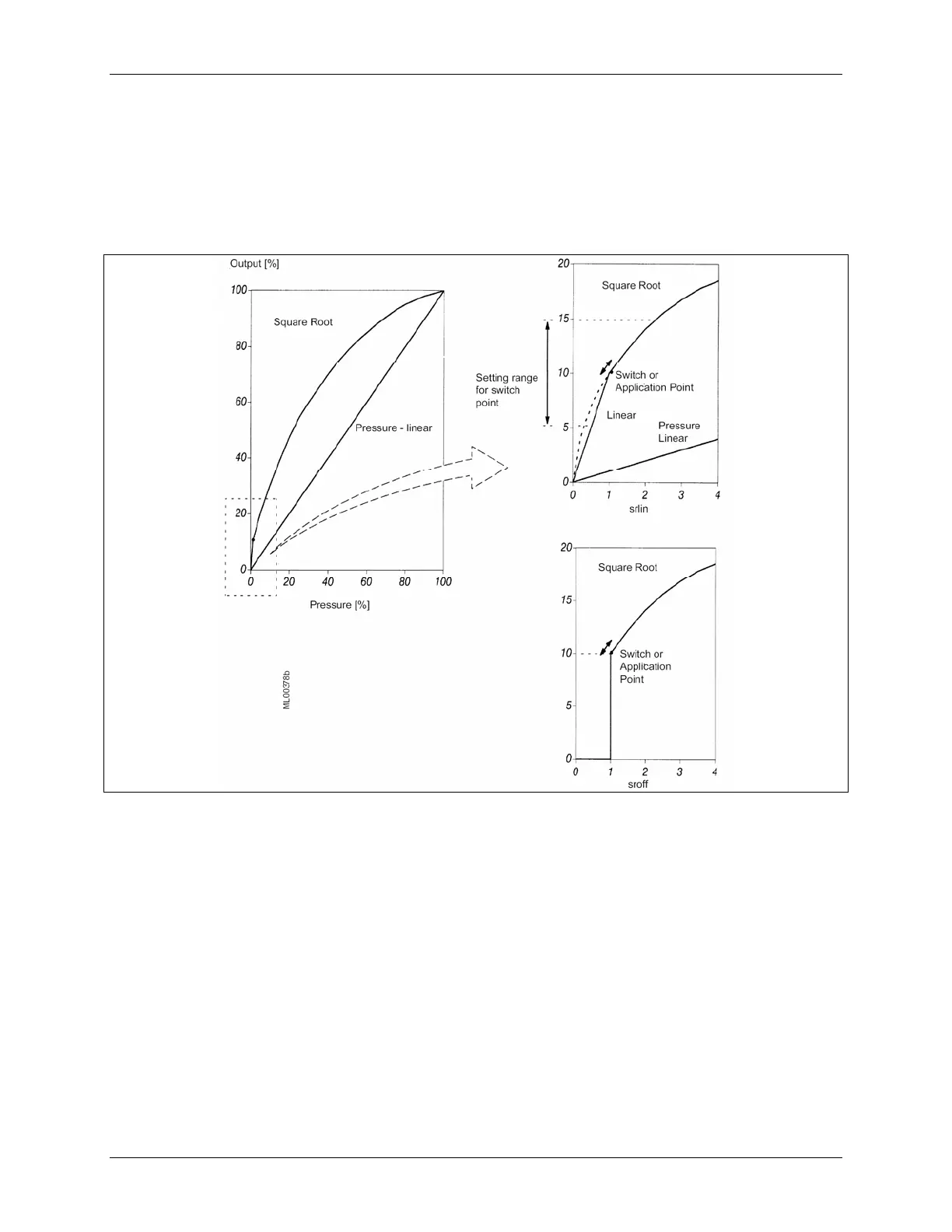

FIGURE 6-2 Switch Point of the Square Root Characteristic
