Introduction UMSITRPDS3-1
November 2005
1-6
1
2
3
4
5
6
Process connection at low side 1/4-18NPT
Mounting thread M10, M12, or 7/16-20UNF
Blanking plug
Electrical connection:
M20 x1.5
1/2-14NPT
Field terminals; remove enclosure cap for
access
Electronics module and display; remove
enclosure cap for access
7
8
9
10
11
12
13
Access cover to magnetic pushbuttons
Sealing screw with valve
Enclosure setscrew
Enclosure rotation limits
Enclosure rotation reference arrow (not
shown; see Section 4 for details)
Tag plate
Rating plate; approval plate on other side
This Figure is for Models 7MF4633 and
7MF4912

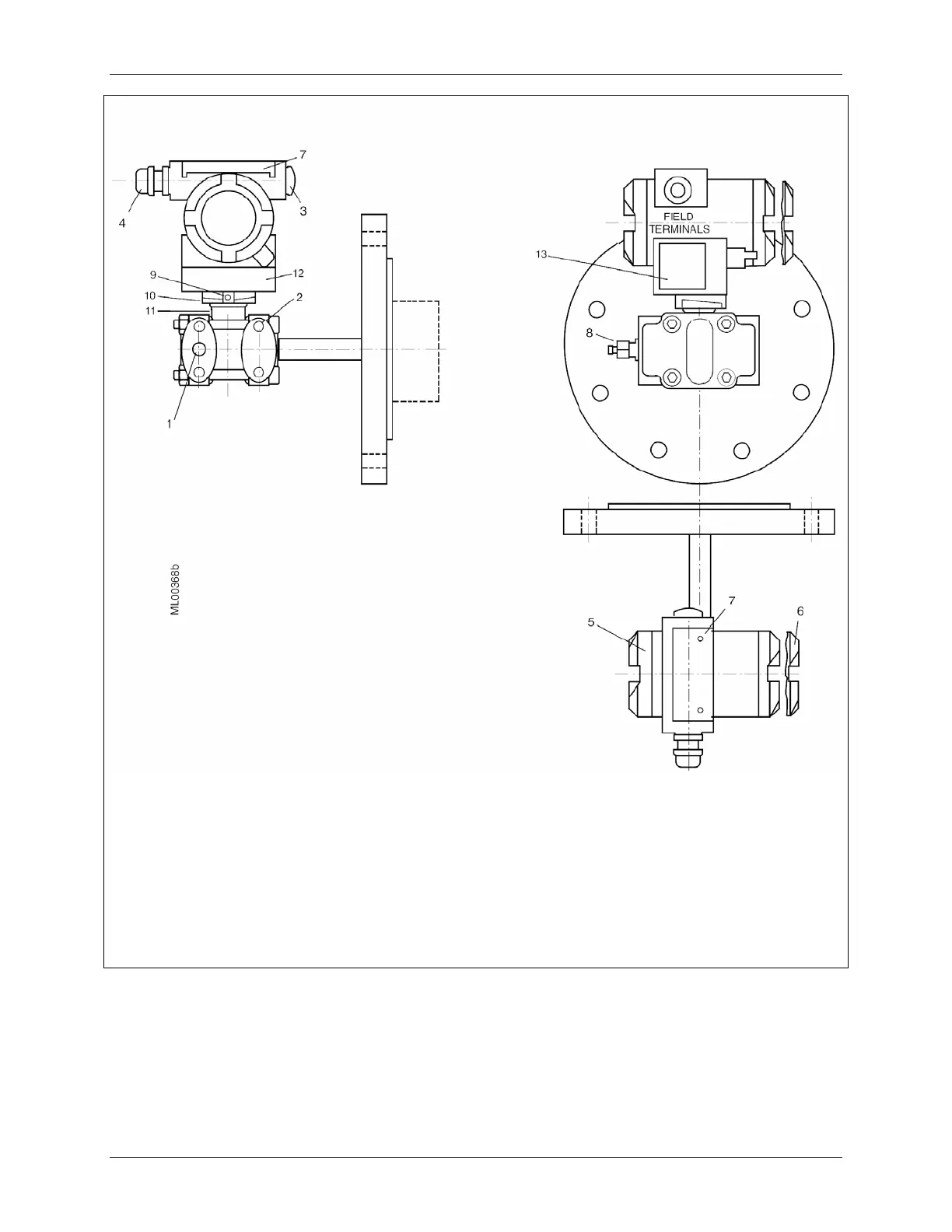

FIGURE 1-4 Flanged Liquid Level Models
