UMSITRPDS3-1 Installation
November 2005
4-23
Models 7MF4033 and 7MF4233
920-07010-XXX-1.pcx

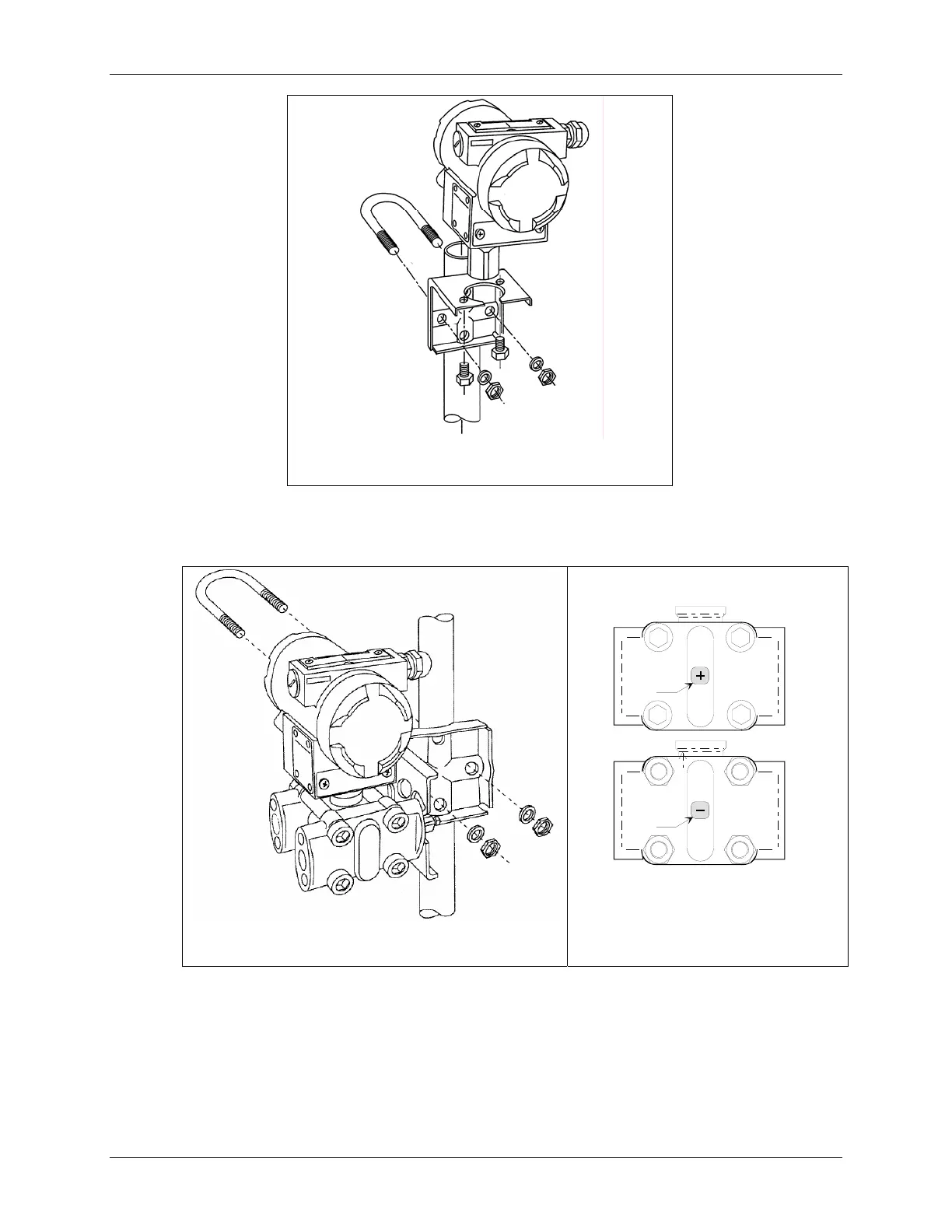

FIGURE 4-11 Pipe Mounting, Gauge Construction
MG00402a
Low
Pressure
Side
High
Pressure
Side
Models 7MF4033, 7MF4433, and 7MF4533
920-07011-XXX-1.pdf
Labels, Low and High Pressure Sides
FIGURE 4-12 Pipe Mounting, Differential Construction
