Siemens 7MF4233 series

UMSITRPDS3-1 Introduction
November 2005
1-5
1
2
3
4
5
6
7
Process connection 1/4-18NPT
Mounting thread M10 or 7/16-20UMF
Field terminals; remove enclosure cap for
access
Electronics module and display; remove
enclosure cap for access
Sealing screw
Enclosure setscrew
Enclosure rotation limits; enclosure
rotation reference arrow on neck (see
Section 4 for details)
10
11
12
13
14
15
Blanking plug
Access cover over magnetic pushbuttons
Electrical connection:
M20 x 1.5
1/2-14NPT
Tag plate
Approval plate; Rating plate on other side
Enclosure ground screw
This Figure is for Models 7MF4433 and
7MF4533 with H03 option.

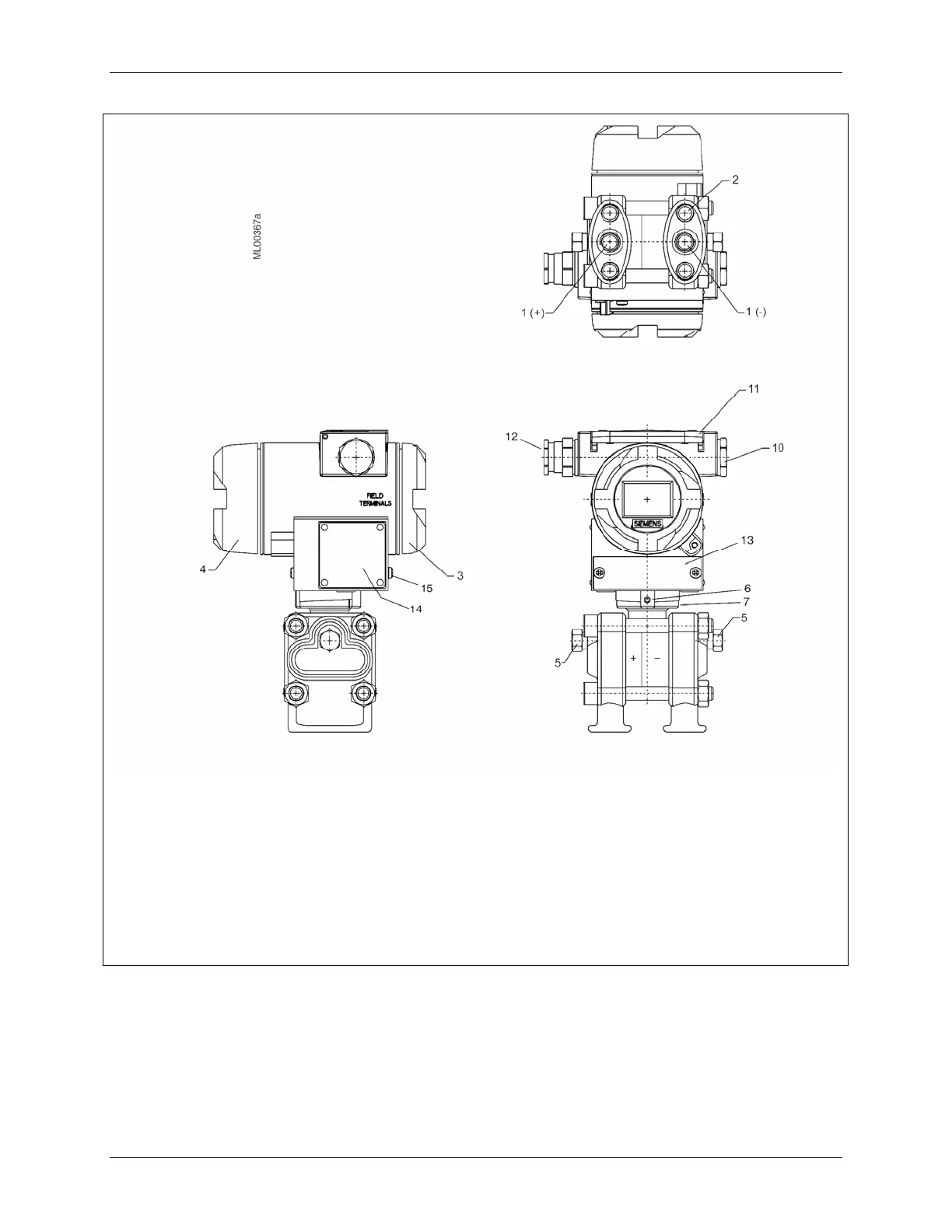

FIGURE 1-3 Differential Pressure and Flow Models with H03 Option
