8. Ground the enclosure by installing a 16 AWG (1.3 mm
2
) or larger copper wire between the enclosure
ground screw and a low resistance ground, such as a nearby metal cold water pipe.
1
2
3
4
5
6
MG00355a

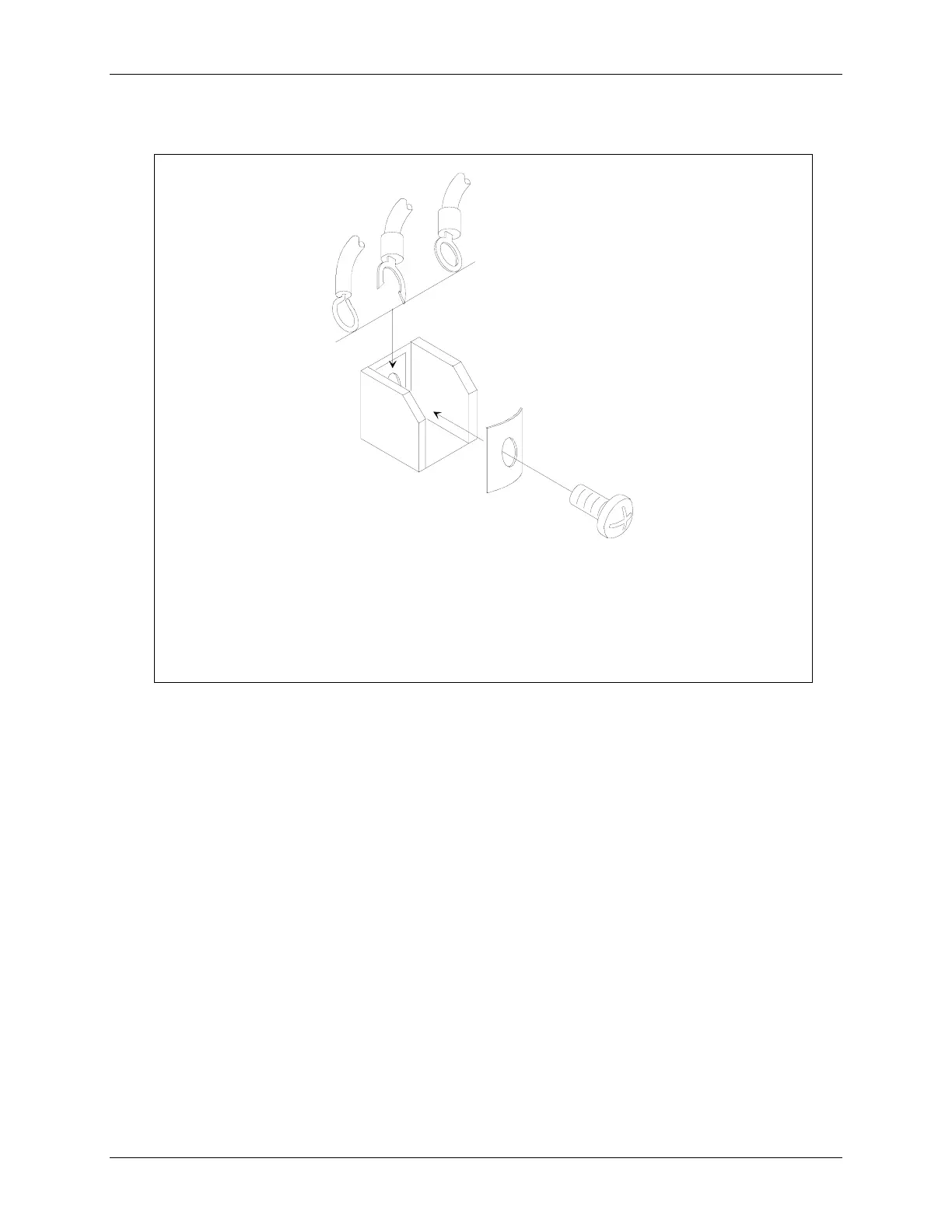

1. Solid conductor with loop formed in end of lead
2. Stranded conductor with spring spade terminal
3. Stranded conductor with ring tongue terminal
4. One of three terminals in the electrical enclosure. Remove end cap to access terminals.
5. Terminal screw
6. Pressure plate
FIGURE 4-17 Network Conductor Terminations
