Siemens 7MF4233 series

UMSITRPDS3-1 Introduction
November 2005
1-3
1
2
3
4
5
Process connection:
1/2-NPT, connection shank G1/2A
Oval flange
Blanking plug
Electrical connection:
Screwed gland M20 x 1.5
Screwed gland 1/2-14NPT
Field terminals; remove enclosure cap for
access
Electronics module and display; remove
enclosure cap for access
6
7
8
9
10
11
12
13
Hinged access cover over magnetic
pushbuttons
Mounting bracket, optional
Tag plate
Approval plate; Rating plate on other side
Enclosure ground screw
Enclosure setscrew
Enclosure rotation limits
Enclosure rotation reference arrow; see
Section 4 for details
This Figure is for Models 7MF4033 and
7MF4233

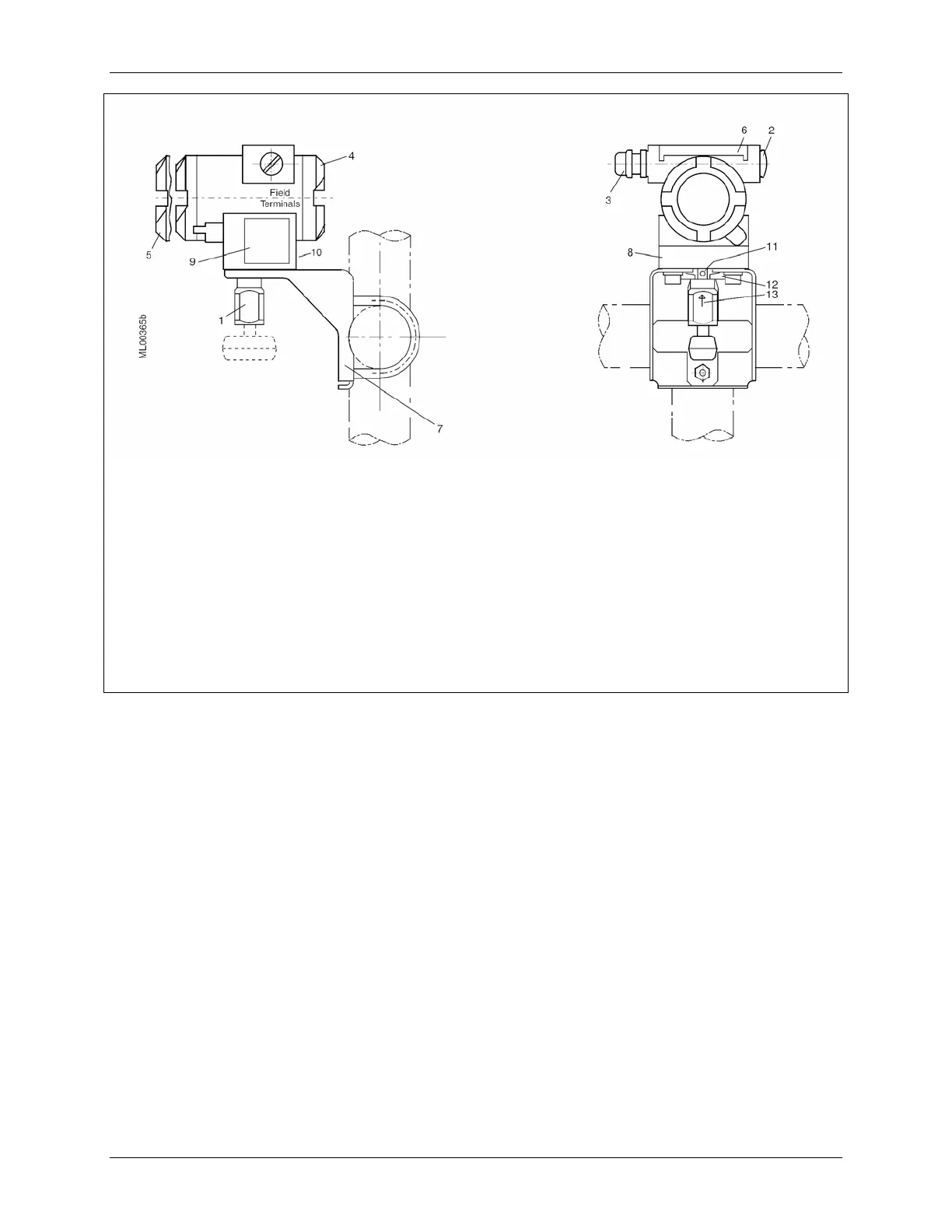

FIGURE 1-1 Gauge Construction, Pressure and Absolute Pressure Models
