Siemens 7MF4233 series

UMSITRPDS3-1 Installation
November 2005
4-5
MG00344a
Flow
3-Valve
Manifold
High
Pressure
Side
Low
Pressure
Side
Model 7MF4433
or 7MF4533
Horizontal Main Line Flow
Transmitter Below Orifice - Preferred for Liquids and Steam
Horizontal Main Line Flow
Transmitter Above Orifice - Preferred for Gas Flow
Flow
High
Pressure
Side
Low
Pressure
Side
3-Valve
Manifold
Vertical Main Line Flow
Transmitter Below Orifice
Flow
3-Valve
Manifold
High
Pressure
Side
Low
Pressure
Side
Vertical Main Line Flow
Transmitter Above Orifice
Flow
Low
Pressure
Side
3-Valve
Manifold
High
Pressure
Side
Model 7MF4433
or 7MF4533
Model 7MF4433
or 7MF4533
Model 7MF4433
or 7MF4533

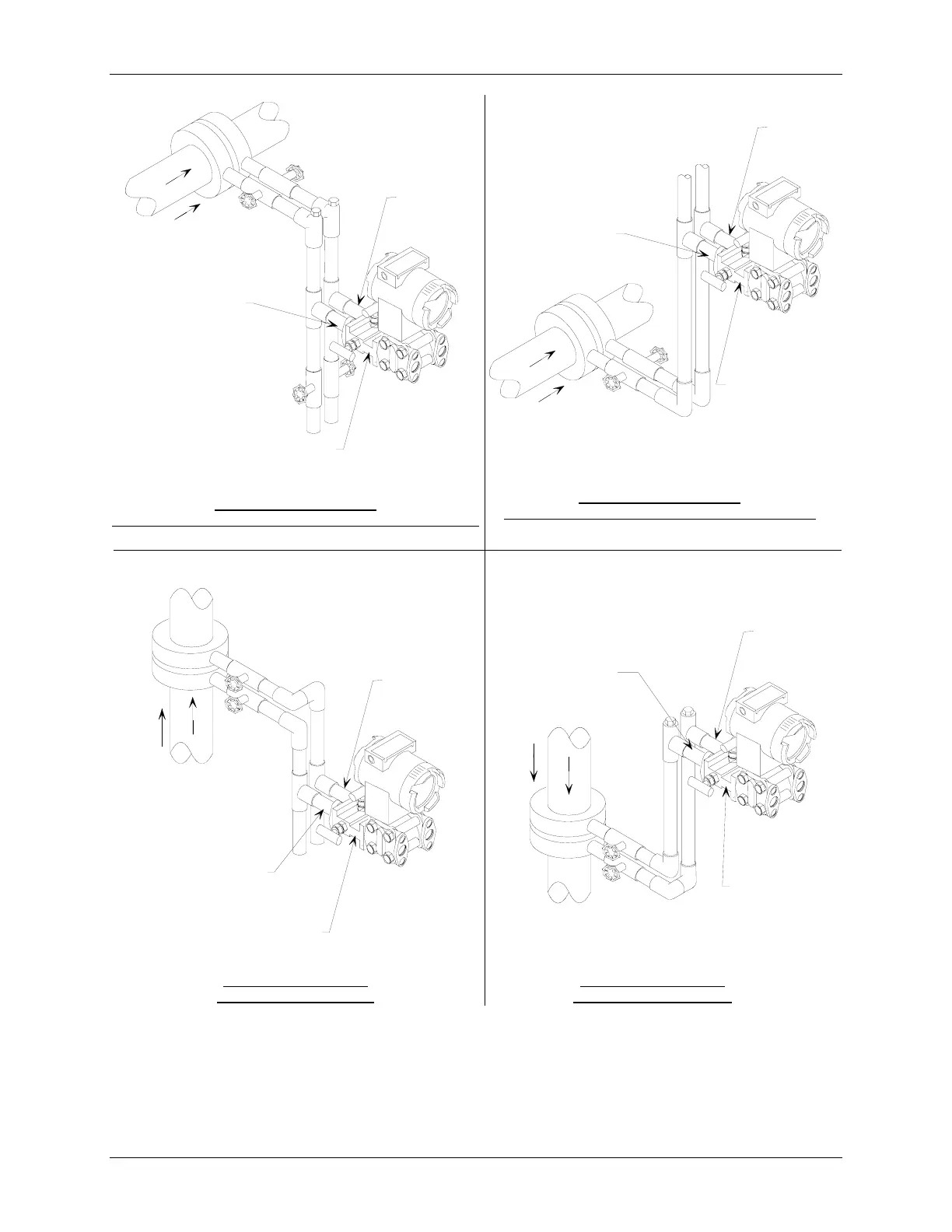

FIGURE 4-1 Differential Flow Measurement Piping for Gas and Liquid
