Structure of the device
2

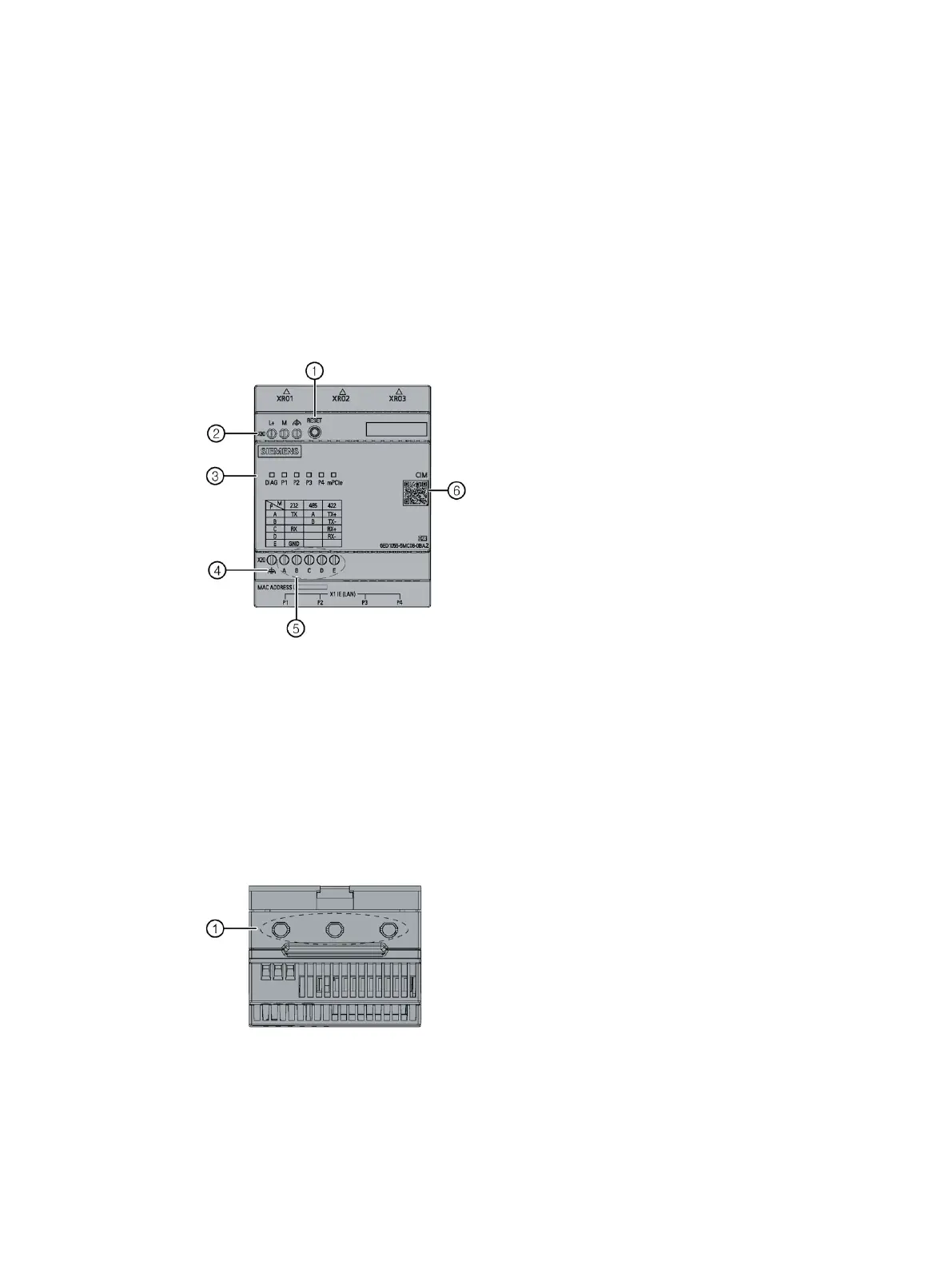

2.1 Appearance of the device
Front view
①
RESET button
②
X80 (L+, M, FE) Power supply connector
③
LED
④
FE terminal for shield cable
⑤
X20 (FE, A, B, C, D, E) Multiplex serial interface
⑥
For more information about the device, scan the QR code
Top view
①
Holes for RF antenna
