Mounting and connecting the device
4.1 Mounting the device
CIM
26 Operating Manual, 11/2022, A5E51250518-AC
4.1.2 DIN rail mounting
Mounting

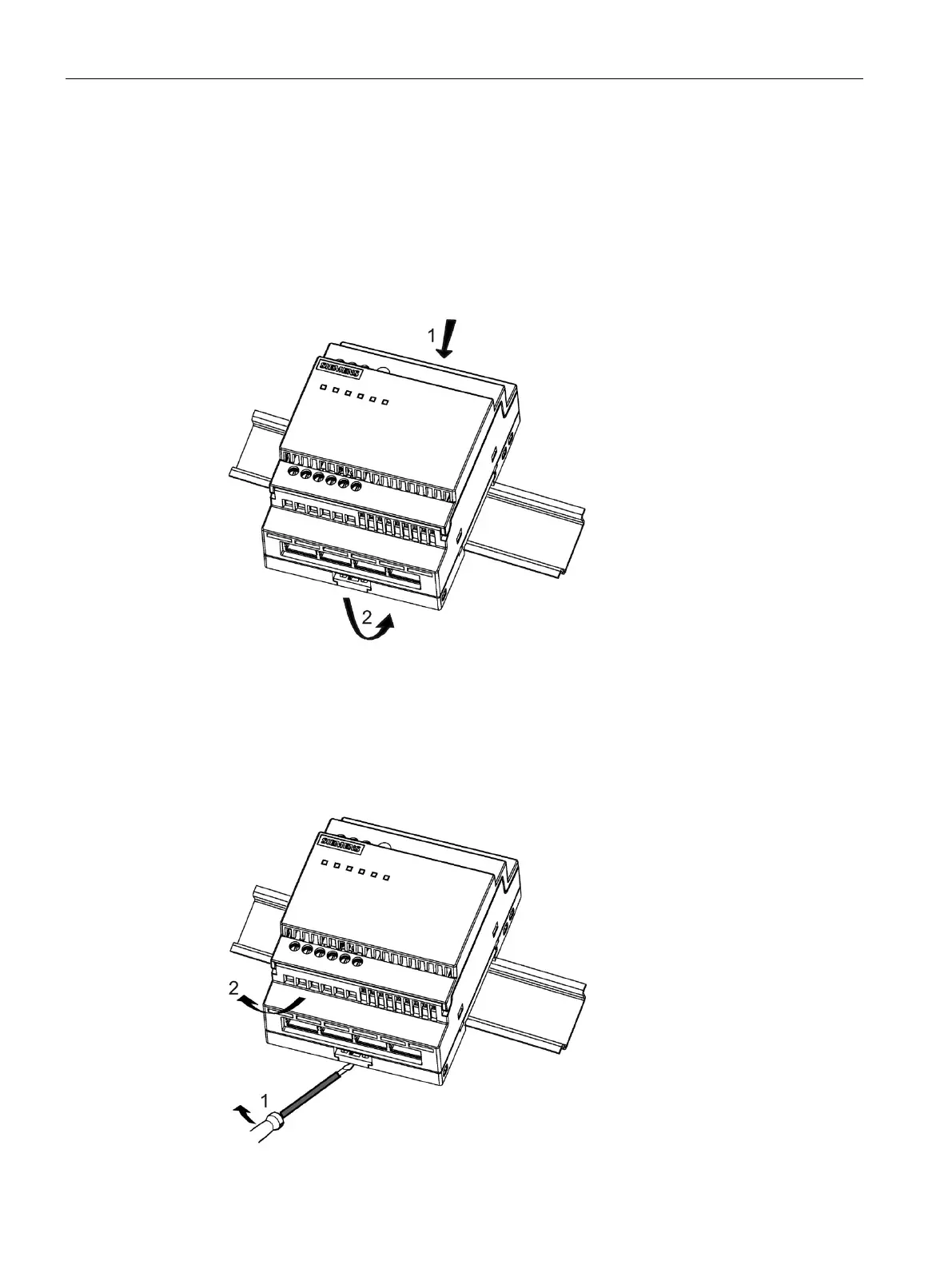

To mount a CIM onto a DIN rail, follow these steps:
1. Hook the CIM onto the rail.
2. Push down the lower end to snap it on. The mounting interlock at the rear must engage.
Removal
To remove CIM, follow these steps:
1. Insert a screwdriver into the eyelet at the bottom of the slide interlock and move the latch
downward.
2. Swing the CIM off the DIN rail.
