5.4.6 Data management
Data management allows you to manage the variables, messages and data bindings and
monitor the online variables. The names for variables, messages, and data bindings must be
unique.
5.4.6.1 Variables
The variable is defined by variable name, data type, address type and address. This chapter
shows how to create and edit variables that you use to store values in CIM. You can create
variables for all data type UDM permitted.

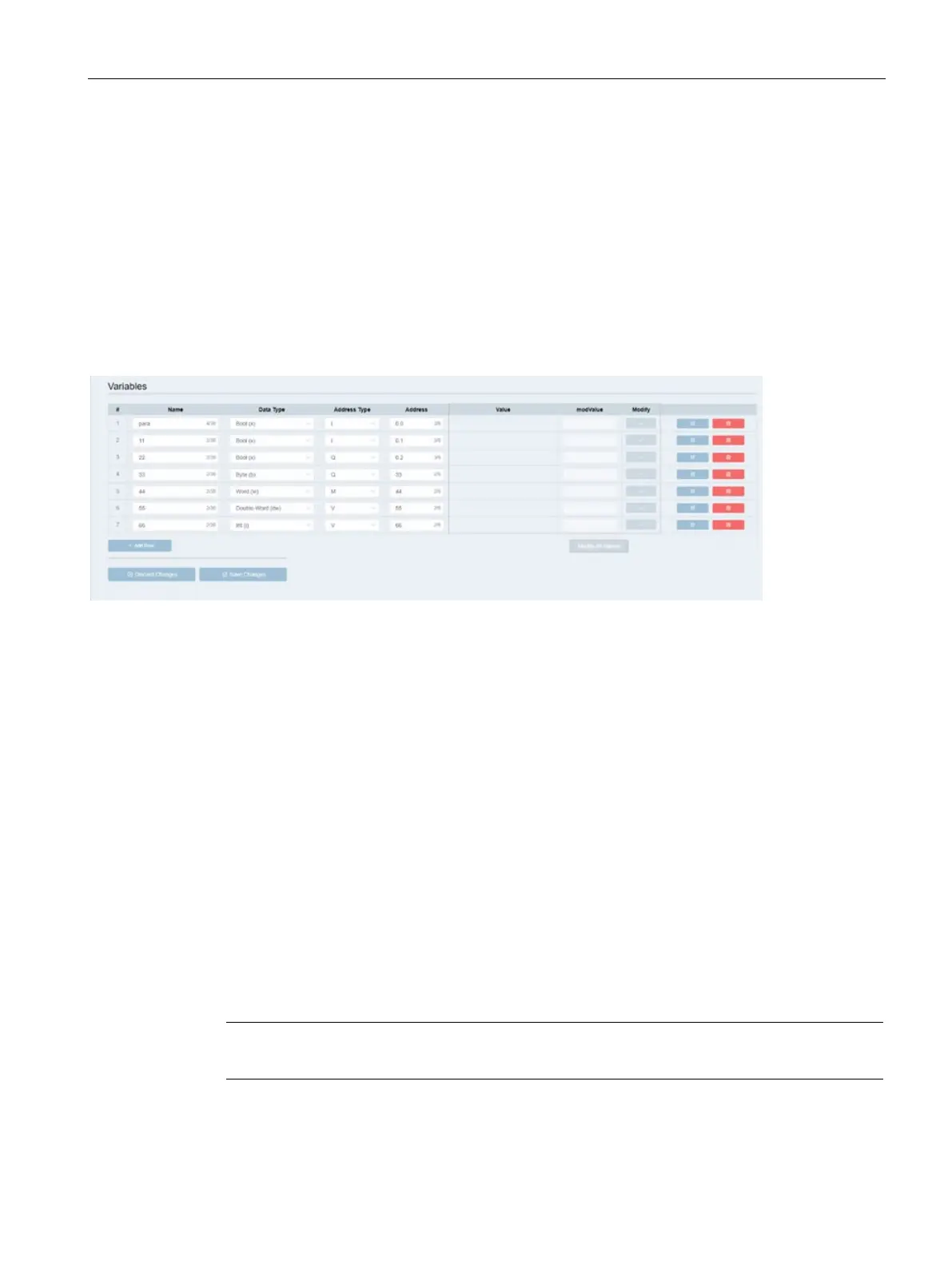

Add a variable
1. Click 'Add Row' button.
2. Enter the parameters of the variable. You can add maximum 16 variables at most.
Name: A variable name can contain letters, numbers and special characters
Data type: data type of the variable
Address type: UDM address type of variable
Address: address in the CIM
3. Repeat step 1-2 to add all variables you need.
4. You can monitor or modify the value of the variable.
Value: the value of the parameter
Modify value (modValue): enter the value of the parameter you want to modify
Modify: click the check mark to modify the value of the parameter
Modify all values: click "Modify all values" to modify the value of parameter as modValue
If the variable is referred by an event or an action, the variable cannot be changed or deleted.
