Mounting and connecting the device
4.3 Installing expansion modules
CIM
34 Operating Manual, 11/2022, A5E51250518-AC
4.3.2 Installing the SMA connector
Requirement
• The device is disconnected from the power supply and the DIAG LED goes out.
Procedure
Follow the steps to install the SMA connector.

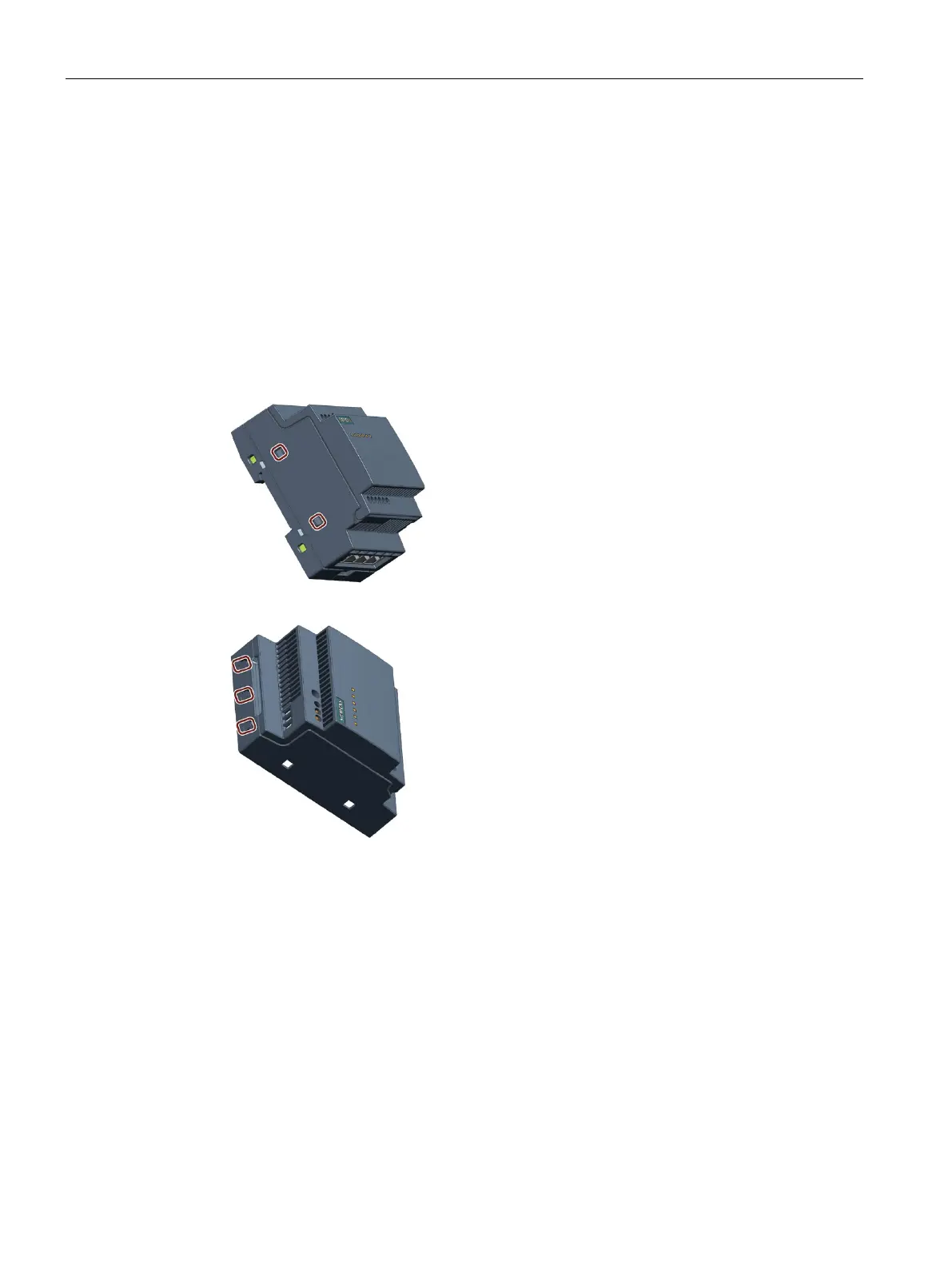

1. Press the marked recesses on both left and right sides of the module with a flat-blade
screwdriver to loosen and then remove the middle housing.
2. Remove the shelter on the middle housing.
