Web-based configuration
5.4 Web pages
CIM
68 Operating Manual, 11/2022, A5E51250518-AC
⑥
Here you configure the properties of the server.
• Remote IP: the IP of the client that you want to connect
⑦
Here you configure the properties of the client.
• Remote IP: the IP of the server that you want to connect
⑧
Click to open the "Data transfer table" of the corresponding connection that CIM work as a Modbus TCP
client.

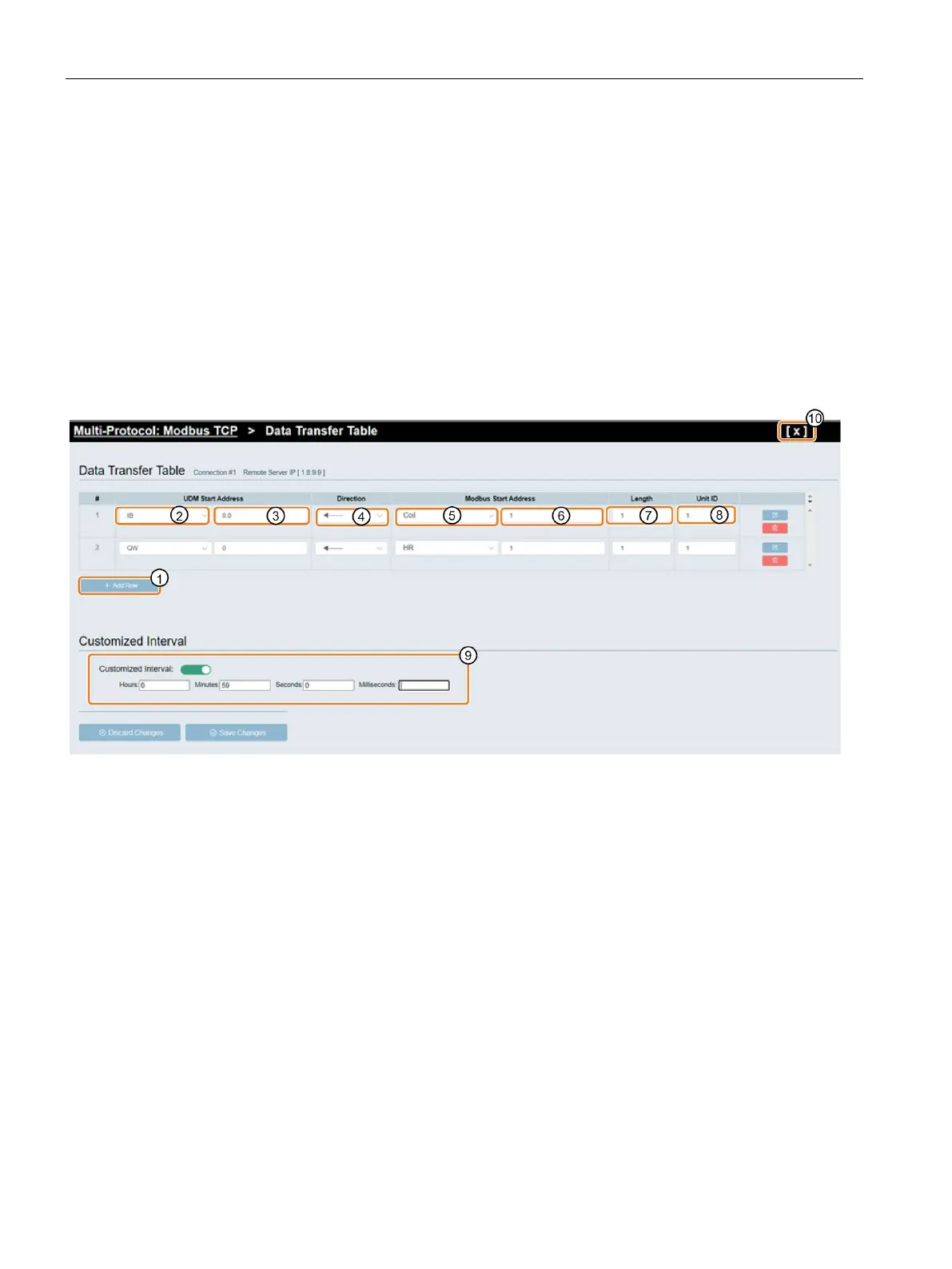

Modbus TCP data transfer configuration
For the connections that CIM works as a Modbus TCP client, you need to configure the data
transfer table:
1. Click ① to add a new row.
2. Click ② to choose UDM address type of CIM.
3. Input one address in the UDM start address field of CIM③.
4. Click ④ to choose data transfer directions.
5. Click ⑤ to choose Modbus address type of the remote Modbus TCP server.
6. Input the Modbus start address of the remote Modbus TCP server ⑥.
7. Input the length of the data need to be transferred ⑦.
8. Input the Unit ID ⑧.
9. To set the time interval that CIM synchronizes the data with the server, enable the
customized interval and input the specified time interval ⑨.
The default minimum transmit interval is 80 milli-second.
10.Save your changes and close the data transfer table.
