Structure and function of the FT2080
52
Building Technologies A6V10380629_en--_a
Fire Safety 2015-09-10
List entry

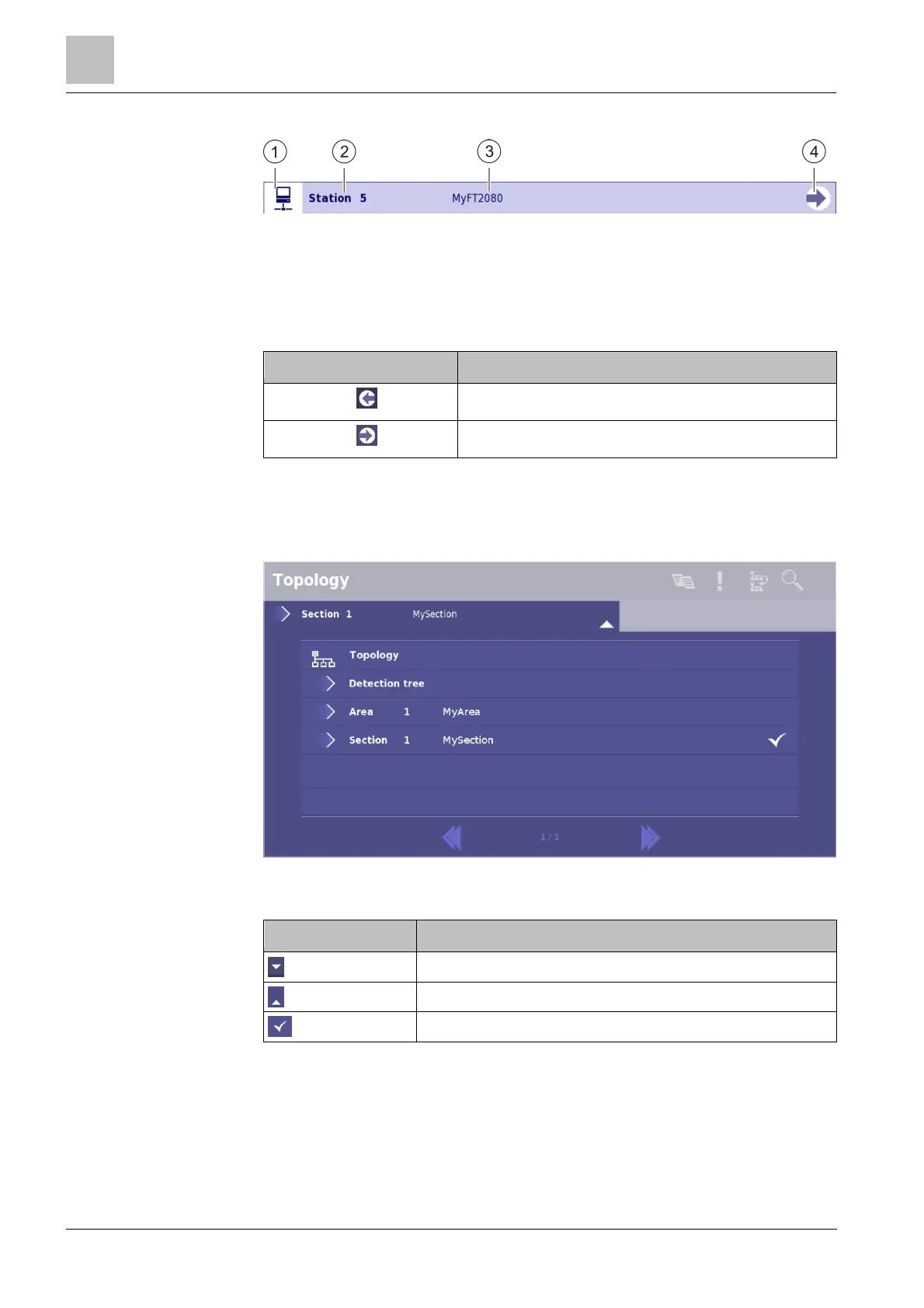

List entry in the topology
1 Element symbol 3 'Customer text'
2 Element text 4 'Lower level' button
Button Function
'Upper level'
Switch to the higher level of the 'Topology'
'Lower level'
Switch to the lower level of the 'Topology'
Buttons in the topology list entry
The list entries are operated using the buttons on the toolbar in the dialog window.
Path bar
Path bar open
Button Function
Open path bar
Close path bar
Current position in the 'Topology'
Buttons on the topology path bar
The path bar displays the higher-level element of the entries in the topology list.
The path bar is always empty on the first level. Select the path bar to switch to a
different level. When open, the path bar maps the elements of the 'Topology' in
hierarchical order in the form of a tree structure. When the path bar is open, you
cannot access the buttons on the dialog window toolbar, since the topology bar is
not visible.
