Structure and function of the FT2080
3
53
Building Technologies A6V10380629_en--_a
Fire Safety 2015-09-10
Switch topology level
Select a line in the tree structure to switch to a different topology level. You may
have to wait when switching levels, waiting times are displayed by the wait
animation. During this time, you cannot use the path bar.
Waiting
Dialog window toolbar

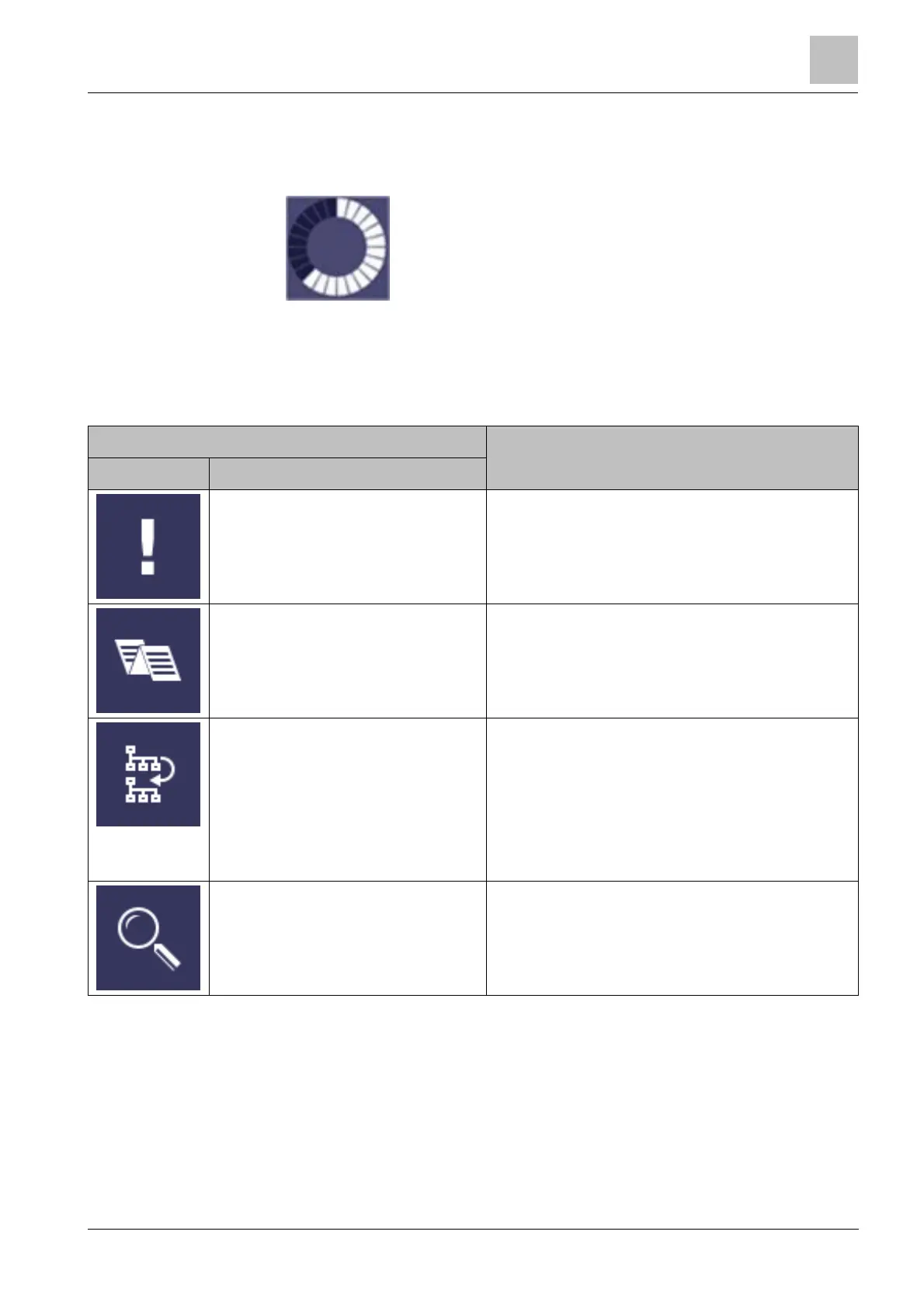

The following table lists the symbols and functions of the buttons on the dialog
window toolbar.
Button Function
Symbol Designation
'Execute commands'
Open the 'Select command' dialog window for the
highlighted element
'Show Event memory' Show Event memory for the highlighted element
'Jump to link'
Switch to a different topology tree of the highlighted
element. The display always switches to the lowest
level of the topology trees. It is possible to switch
between topology trees as follows:
l From 'Detection tree' to 'Control tree'
l From 'Hardware tree' to 'Control tree'
l From 'Control tree' to 'Hardware tree' or
'Detection tree' based on the highlighted element
'Show details' Show details for the highlighted element
