Expansion of Basic System with External //0s
How to Disconnect the Terminal Block
} Position the terminal block as is shown in Figure 5-11.
} Insert the extraction tool into the slot beside the terminal so that you can compress the barb.
} Position the cable in the groove on the extraction tool and pull out both the tool and the cable.
) Realign the deformed barb so that you can use the terminal again.

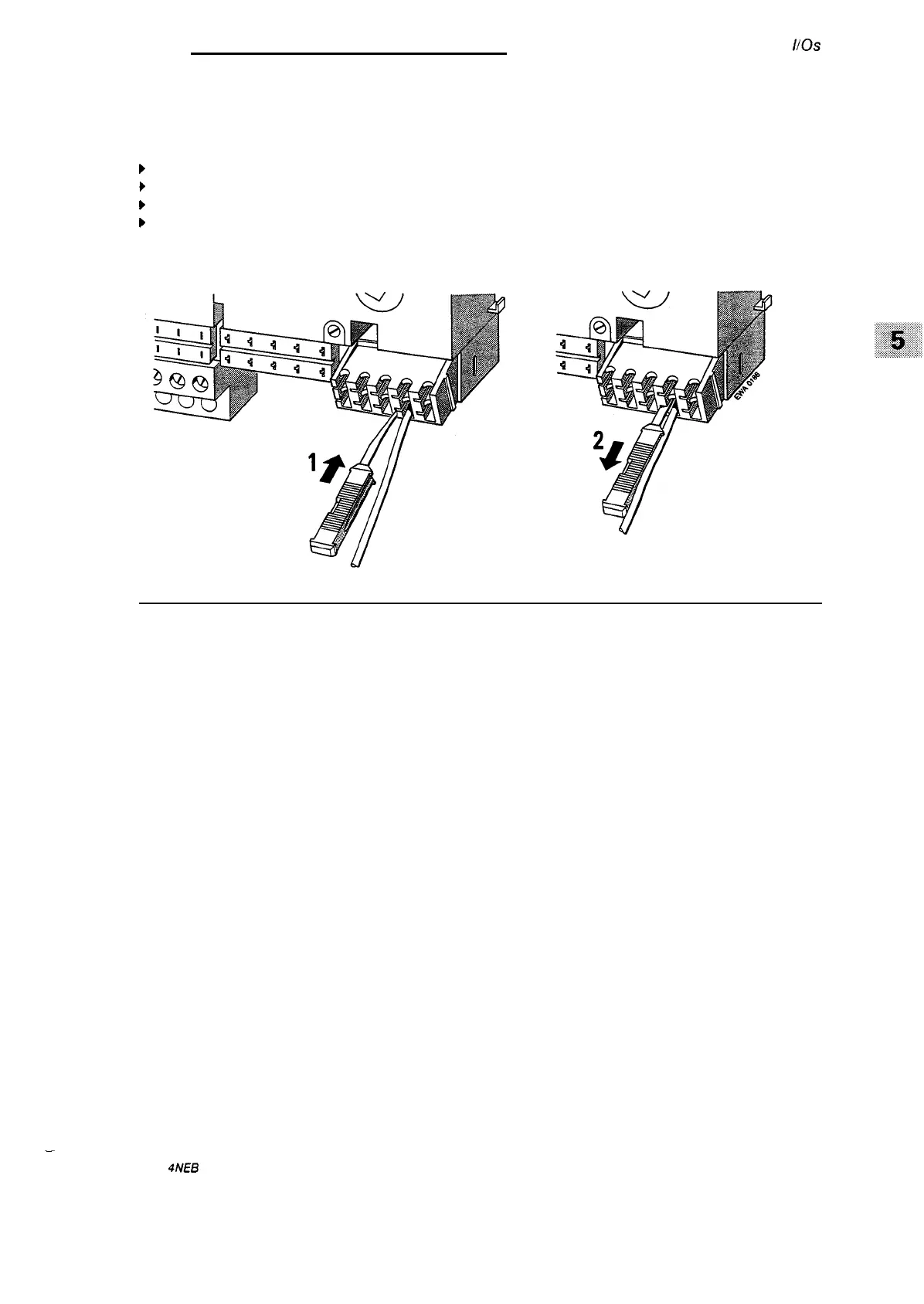

Figure S-1 1.
Disconnecting a Terminal
—
EWA 41VEB 8126210-02
5-11
