Actions
After you have created a new control monitor or opened a control monitor for
editing, you can perform the following actions:
• Select or change the trigger signals that will cause the monitor to run.
• Define or change the actions to be executed when a trigger is detected.

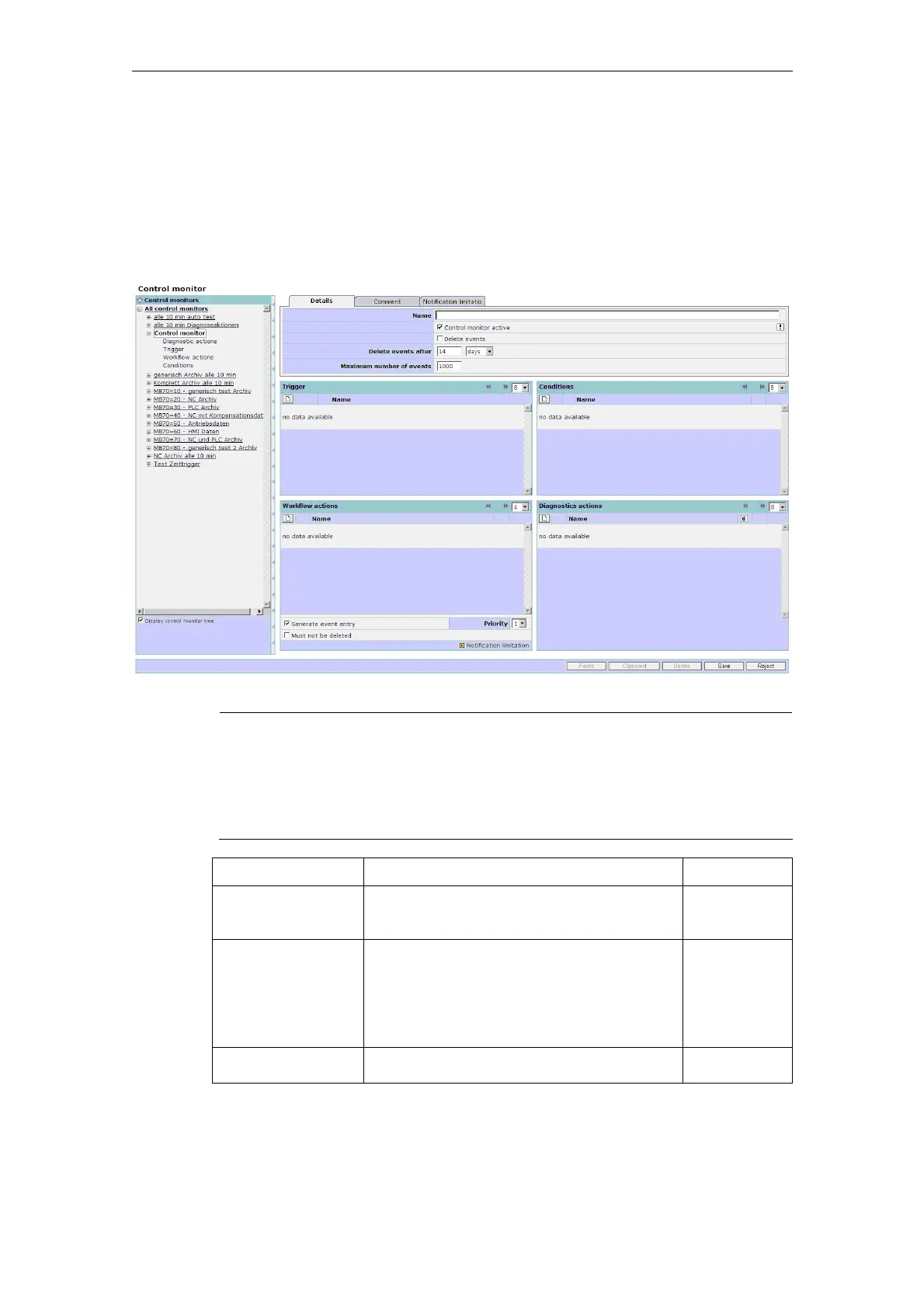

Fig. 3-24: Control monitor - Detailed view
Note
The automatic deletion of data does not result in the retention of the available
memory space on the server. The values are only no longer visible on the UI and
are no longer available for evaluations.
To optimize the memory space after deletion, the database administrator must
manually create a database backup in order to perform a shrink.
Function Description Type
Details tab Displays function settings on the control
monitor, which can be edited.
TAB
SELECTION
Name Name of the control monitor:
The names of the control monitors must be
unique. If a name has not been entered, the
system automatically assigns a name, e.g.
control monitor (n), where n is the
automatic consecutive number.
DISPLAY
INPUT
(max. 100
characters
are
permissible)
Control monitor
active
Activate or deactivate the control monitor
via the checkbox.
DISPLAY
