3.4.14 Server trigger on "Measurement series reaches limit value"
Function description
Any actions can be initiated if at least one of them has exceeded the limit value in
one of the measurement series configured in the trigger.
The trigger is only initiated if a limit value is violated at the point of the axis test.
Subsequent modification of the limit values to below the violation limit does not
trigger any actions.

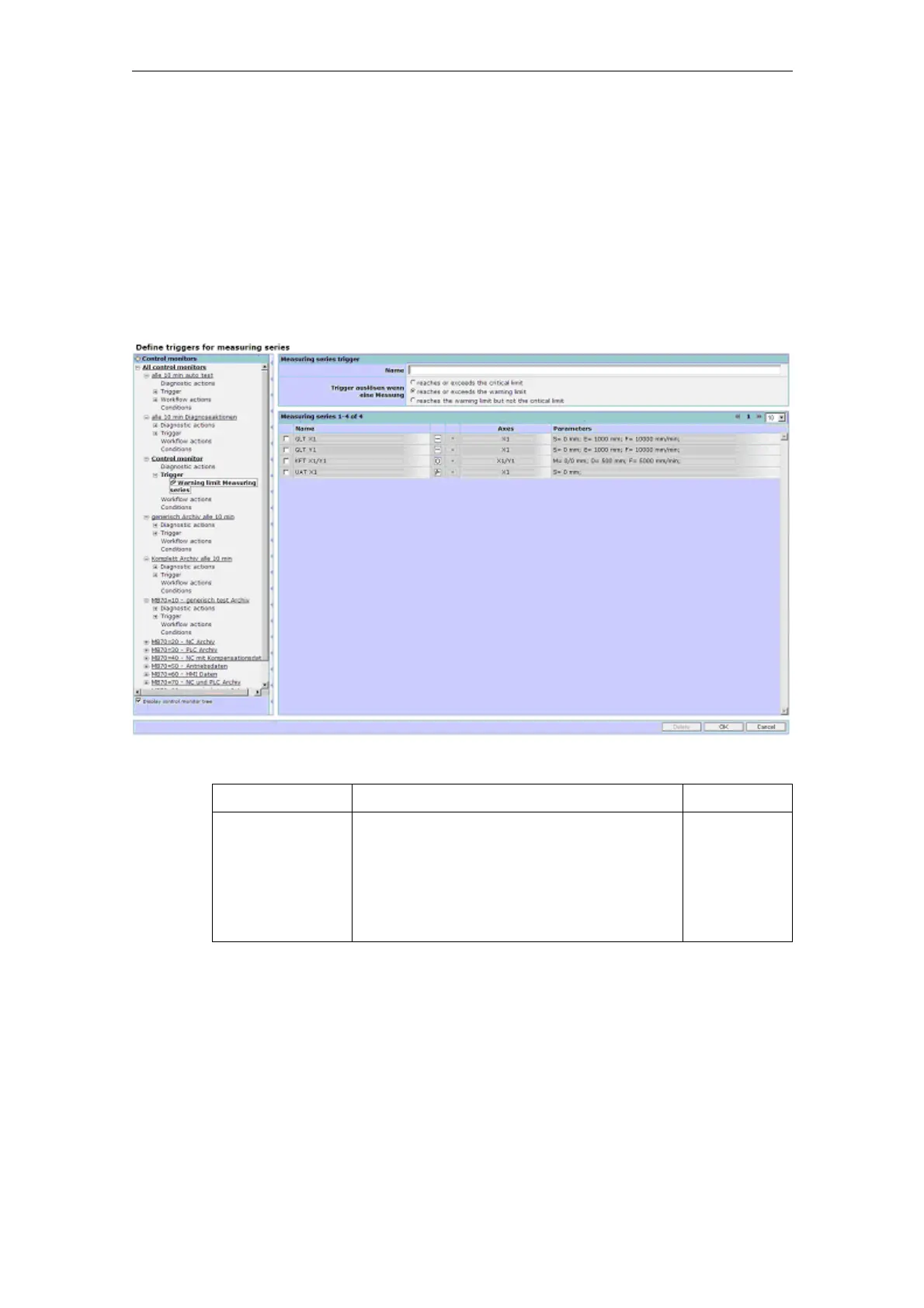

Fig. 3-40: Trigger on measurement series reaches limit value
Function Description Type
Name Name for the trigger; can be entered by the
user. If the box remains empty, or if the name
is deleted, SINUMERIK Integrate generates a
name from the selected measurement
ranges. A consecutive number (n) can be
added to this name.
DISPLAY
INPUT
(max. 40
characters,
all characters
are
permissible)
