03/2013 2 Machine information
2.2 Variable monitors – time Series – measurements and measurement series
© Siemens AG 2006-2013 All Rights Reserved
SINUMERIK Integrate AMB, AMC, AMM, Function Manual (FH) - 03/2013
2-39
2.2 Variable monitors – time Series – measurements and
measurement series
2.2.1 Visualization on the Internet PC
Function description
The performance and status of a machine and its modules can be analyzed with
measurements and measurement series that have been performed on the
machine. This includes measurement curves generated from the measurements
and characteristics, as well as additional information about the measurement
result. Trend curves can be generated from characteristics in measurement series.
The machine operator can use the measurement results to make an analysis at a
later point, while away from the machine. Status changes can be derived from the
trend curves. Limit values will show whether any maintenance work is necessary at
an early stage.
Selection and filter area

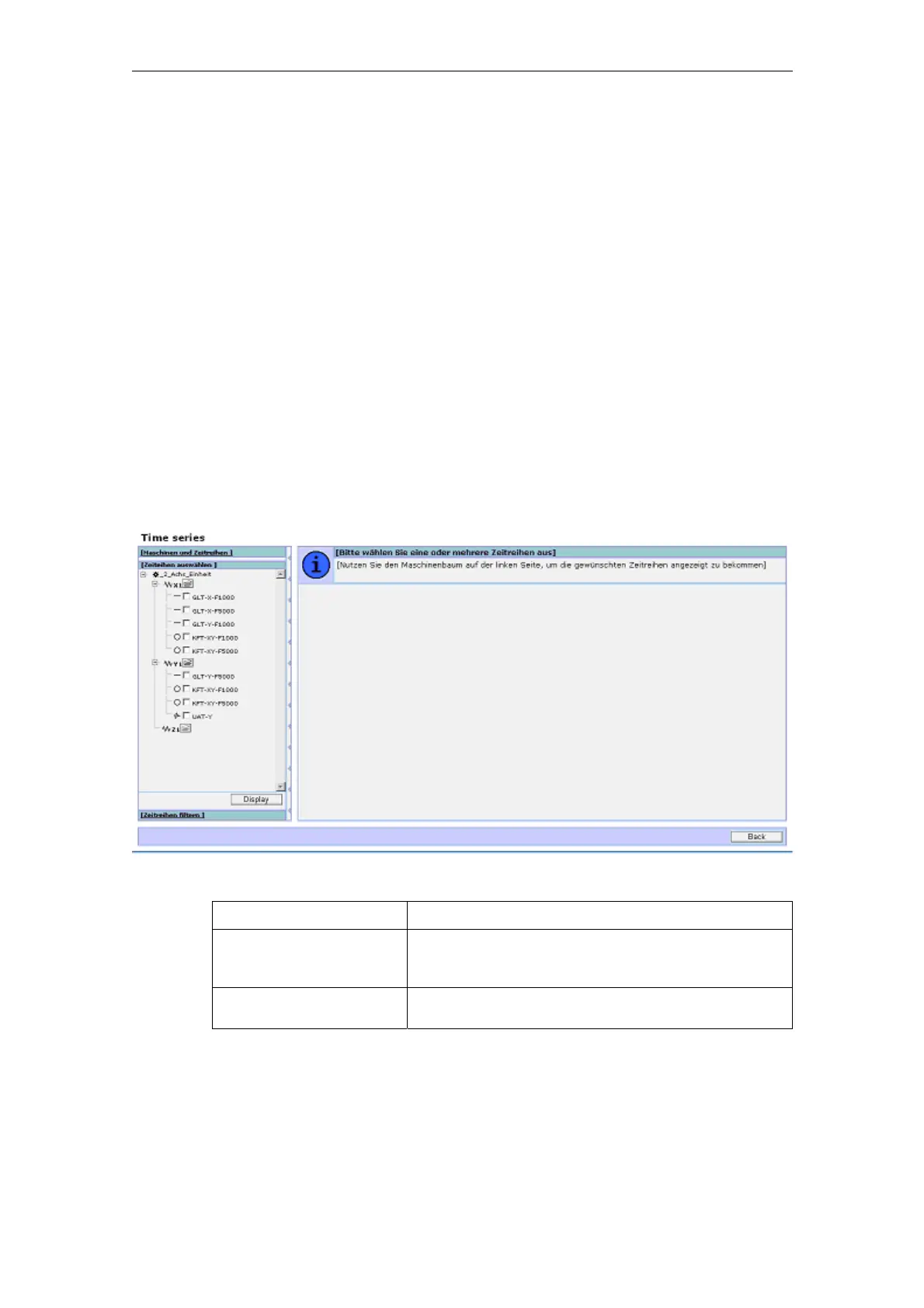

Fig. 2-21: Overview of the time series for the machine selected
Function Description
Select time series Measurement series / time series can be selected
from the machine axes in the selection tree. It is
possible to select several measurement series.
Display The "Display" function shows the selected
measurement series in diagrams.
