7 Establishing a connection and diagnostics
7.1 Connecting the machine
Description
Use the following procedure to be able to use the SINUMERIK Integrate
applications in the control:
1. An administrator creates the machine with the associated master data on the
server.
2. It is then necessary to register the machine. SINUMERIK Integrate assigns
the machine an unambiguous identification.
3. The machine is connected with SINUMERIK Integrate.
4. The alarm model can then be uploaded and the machine synchronized.
Operating sequence on the machine

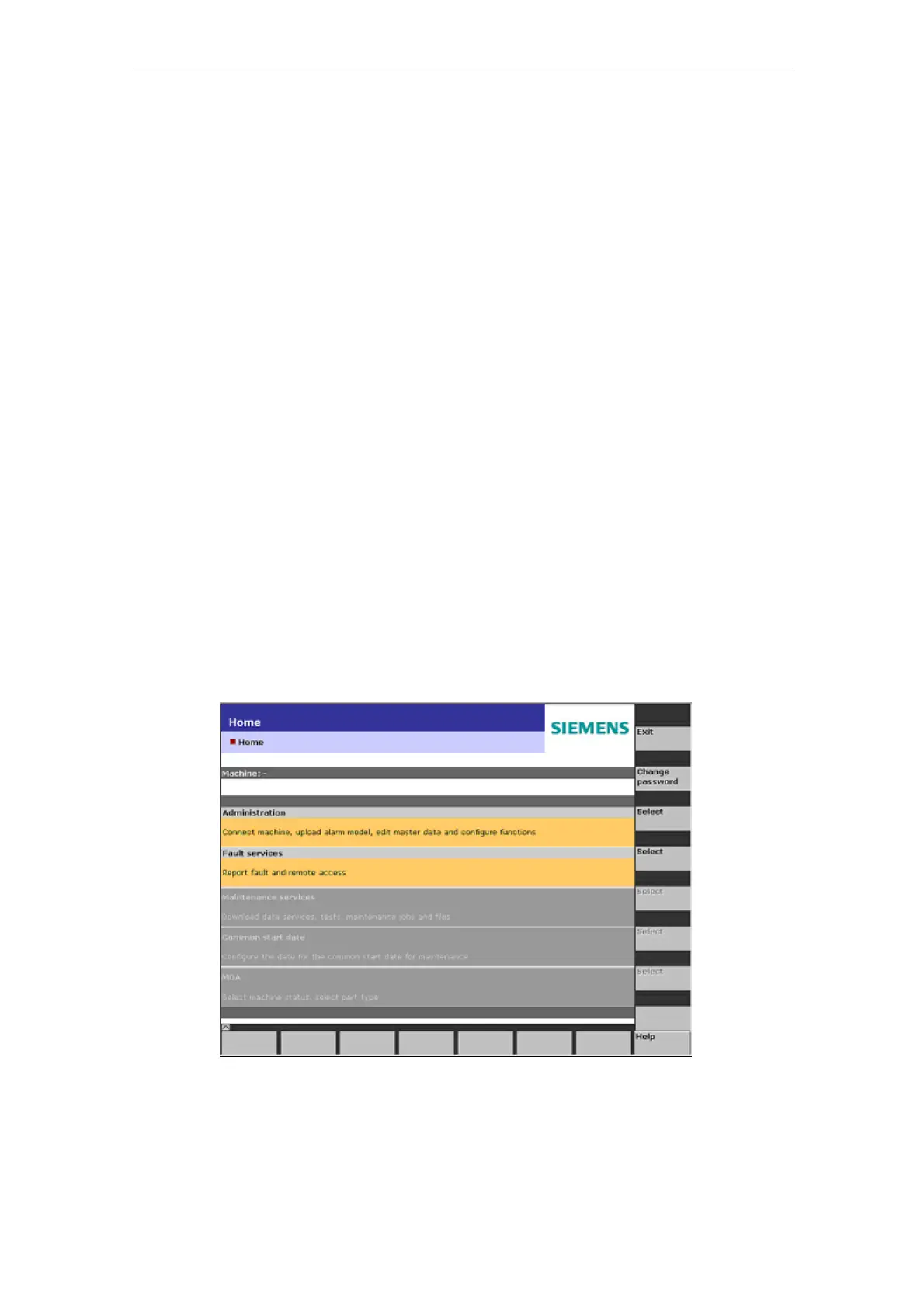

Fig. 7-1: After logging on to the control
7
