Security note on displaying PDF documents
Notice
PDF documents to be displayed on the operator panel of the control must not
contain any active contents (Java script, e-mail fields, etc.) nor have any HTML
Links!
Otherwise you run the risk of navigating from the SINUMERIK Integrate system to
other web sites.
At the operator panel of the control, SINUMERIK Integrate only supports the
display of PDF documents that are compatible with Acrobat 1.3 (Reader Version
4.x).
For optimum display, please create your PDF documents with the option "Initial
View: Page Only/ Magnification Fit Width".
3.1.2 Configuring variable monitors
Overview
You configure a variable monitor in the following steps:
1. Select the variable monitor or create a new variable monitor.
2. Name the variable monitor; comments and icons can be added as an option.
3. Define variables (PLC, NC, SINAMICS drives, generic variables, user-defined
variables) that can be addressed in SINUMERIK Integrate.
4. Use a control monitor to execute the variable monitor.
Selecting or creating variable monitors
Since it is possible for each machine to have several variable monitors, there is the
option of sorting them in the overview display either by their names or by the two
classification fields. Additionally, you can use a search text with text segment
specifications that are related to the name and variable columns to filter the
representation.

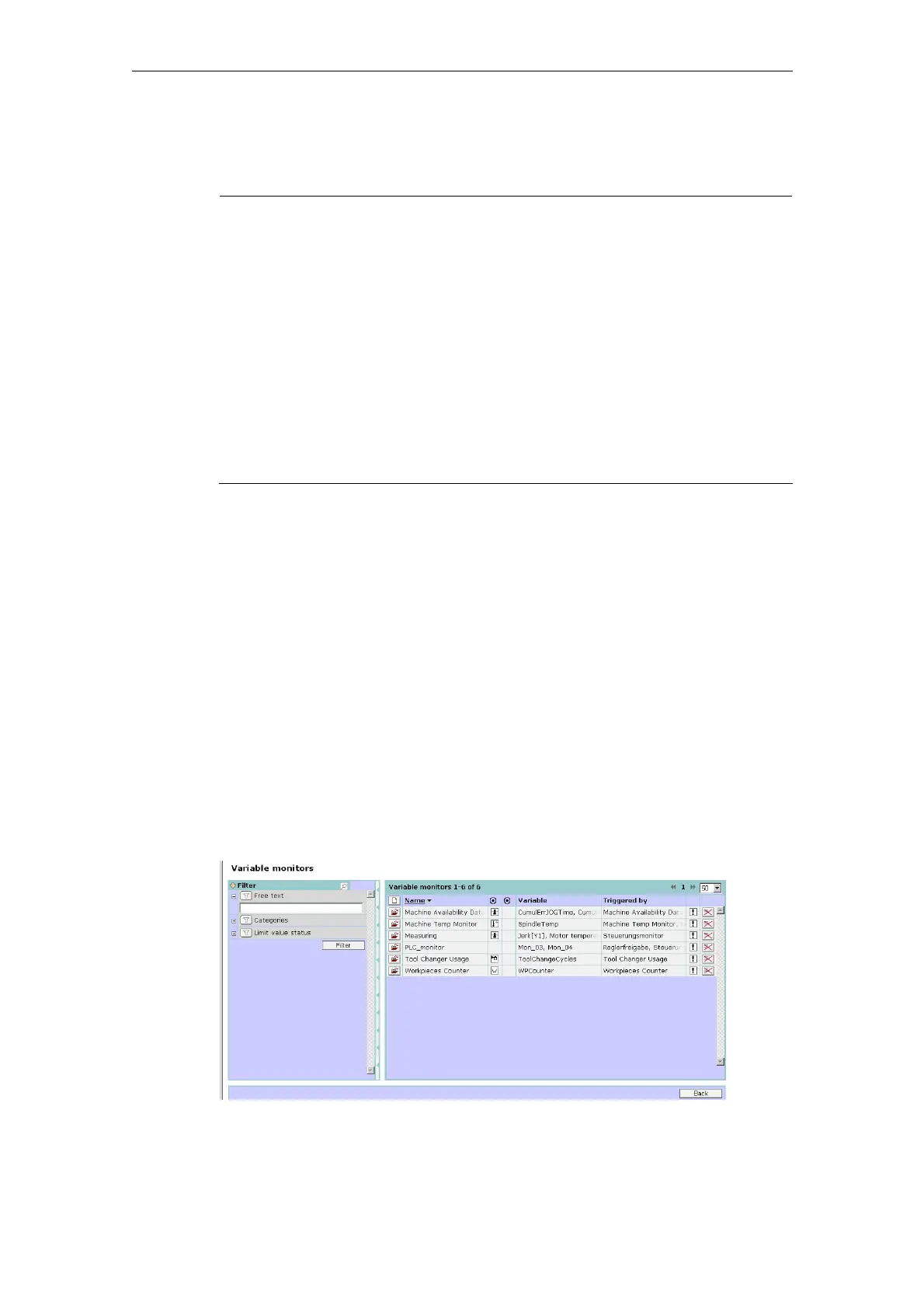

Fig. 3-4: Select the variable monitor
