Analog modules
6.14 Analog output module SM 332; AO 2 x 12 Bit; (6ES7332-5HB01-0AB0)
S7-300 Automation System Module data
6-124 Manual, 08/2006, A5E00105505-04
Wiring: 2 and 4-wire measuring transducer for current measurement
&+
&+
6)
6
49
6ದ
0$1$
6
49
6ದ
0$1$
/
0
9
'&

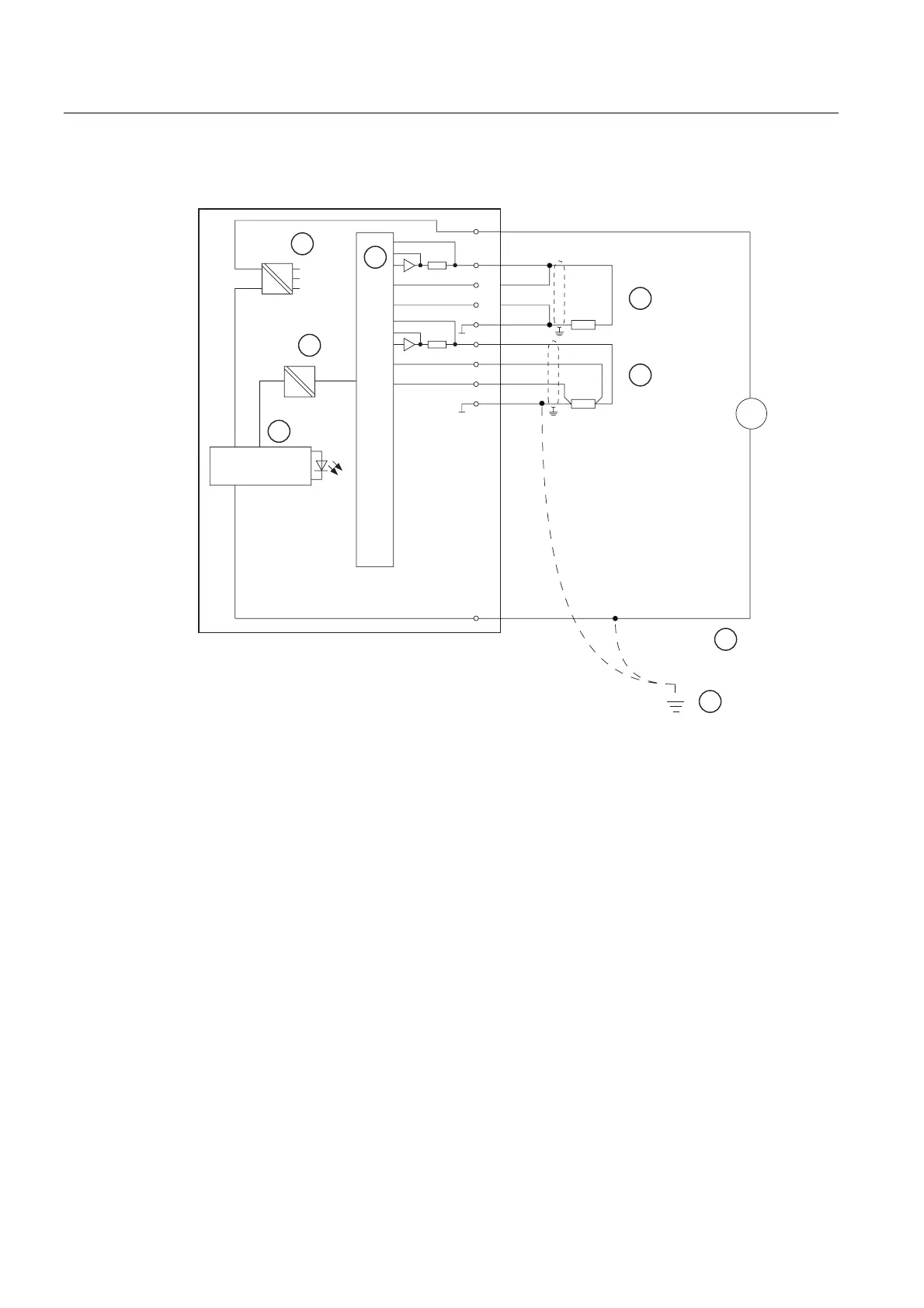

Figure 6-39 Wiring and block diagrams
① 2-wire connection: without compensation for the line resistors
② 4-wire connection: with compensation for the line resistors
③ Potential compensation
④ Function ground/earth
⑤ Internal supply
⑥ Electrical isolation
⑦ Backplane bus interface
⑧ Analog-to-Digital Converter (ADC)
