6.14 Analog output module SM 332; AO 2 x 12 Bit; (6ES7332-5HB01-0AB0)
S7-300 Automation System Module data
Manual, 08/2006, A5E00105505-04
6-125
Connection for current output






&+
&+
6)
4,
0$1$
4,
0$1$










/
0
9
'&



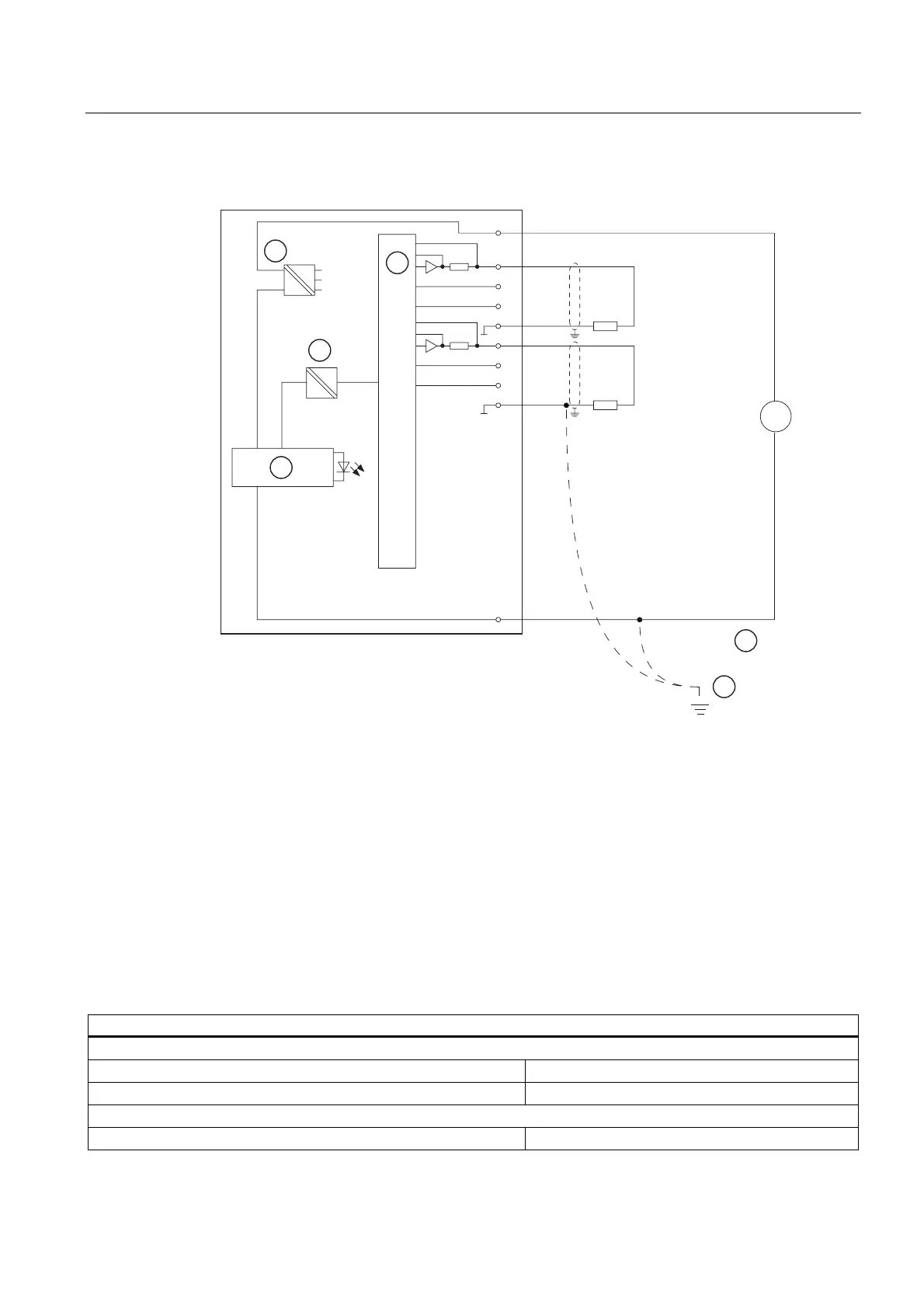

Figure 6-40 Wiring and block diagrams
① Potential compensation
② Function ground/earth
③ Internal supply
④ Electrical isolation
⑤ Backplane bus interface
⑥ Analog-to-Digital Converter (ADC)
Technical data
Technical data
Dimensions and weight
Dimensions W x H x D (mm) 40 x 125 x 117
Weight approx. 220 g
Module-specific data
Isochronous mode supported No

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
