EIP-200S Ethernet/IP Adapter Distributed I/O System
System Manual, 06/2018, A5E44345053-AB
105
Dimension drawings
B
Introduction
Following are dimension drawings of the ET 200S system and EIP-200S Ethernet/IP
Adapter.

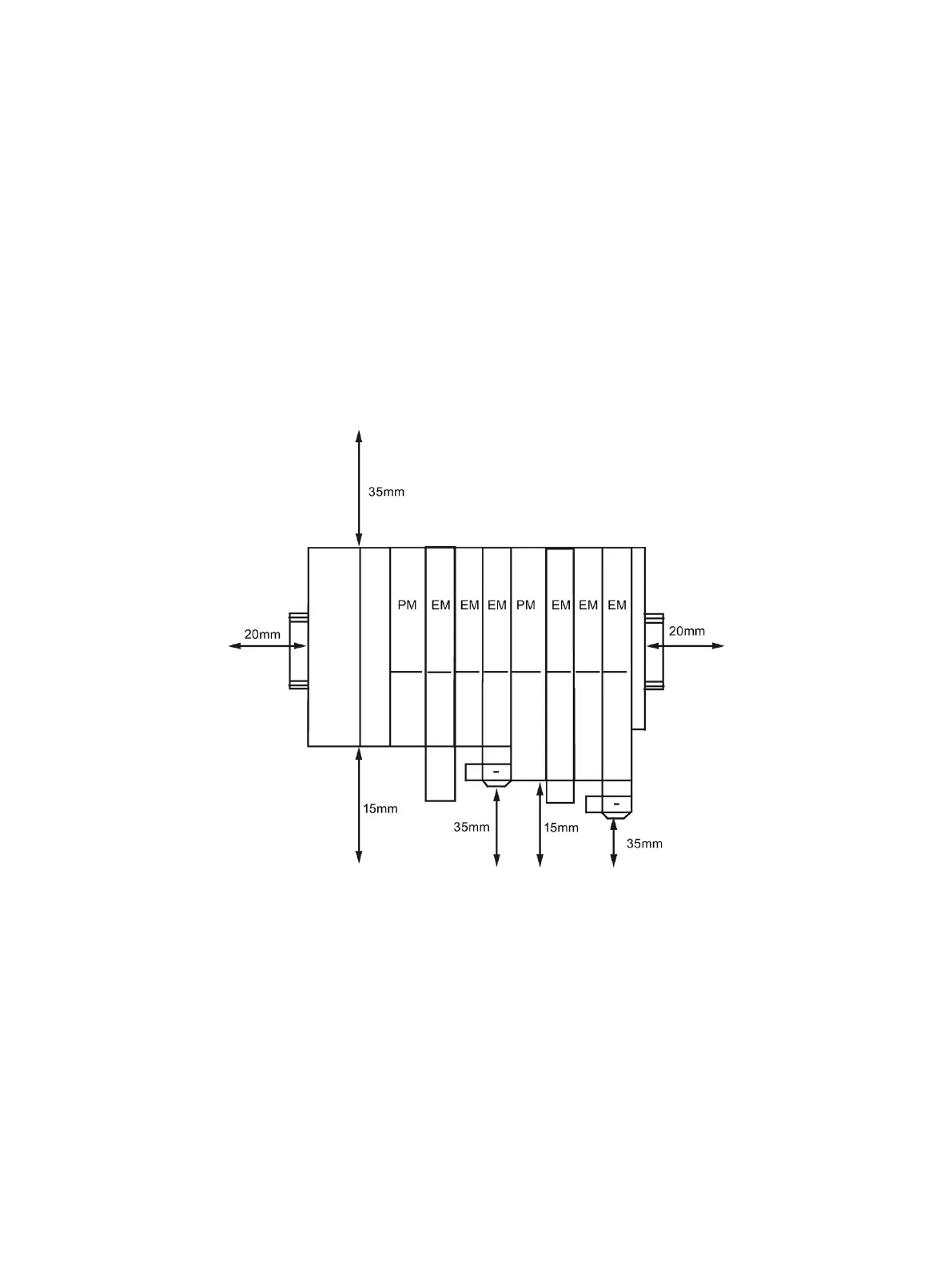

Minimum clearances for installation, wiring, and ventilation for ET 200S
