Installation and wiring
3.9 Wiring the ET 200S
EIP-200S Ethernet/IP Adapter Distributed I/O System
72 System Manual, 06/2018, A5E44345053-AB
Wiring terminal modules for power and electronic modules
Features
The ET 200S distributed I/O system comprises terminal modules for power modules and
electronic modules:
● At the terminal modules for the power modules, you connect the supply/load voltage for
the respective potential group.
● Terminal modules for electronic modules connect the ET 200S with the process.
● At the terminal modules for electronic modules, you can connect cable shields by means
of a shield contact.
● You must wire the terminal modules with the supply/load voltage switched off at the
power module and the load voltage switched off at the electronic module.
● Adhere to the wiring rules.
3 mm screwdriver
Wiring terminal modules for power modules
The terminal assignment of the terminal module depends on which power module is
inserted.

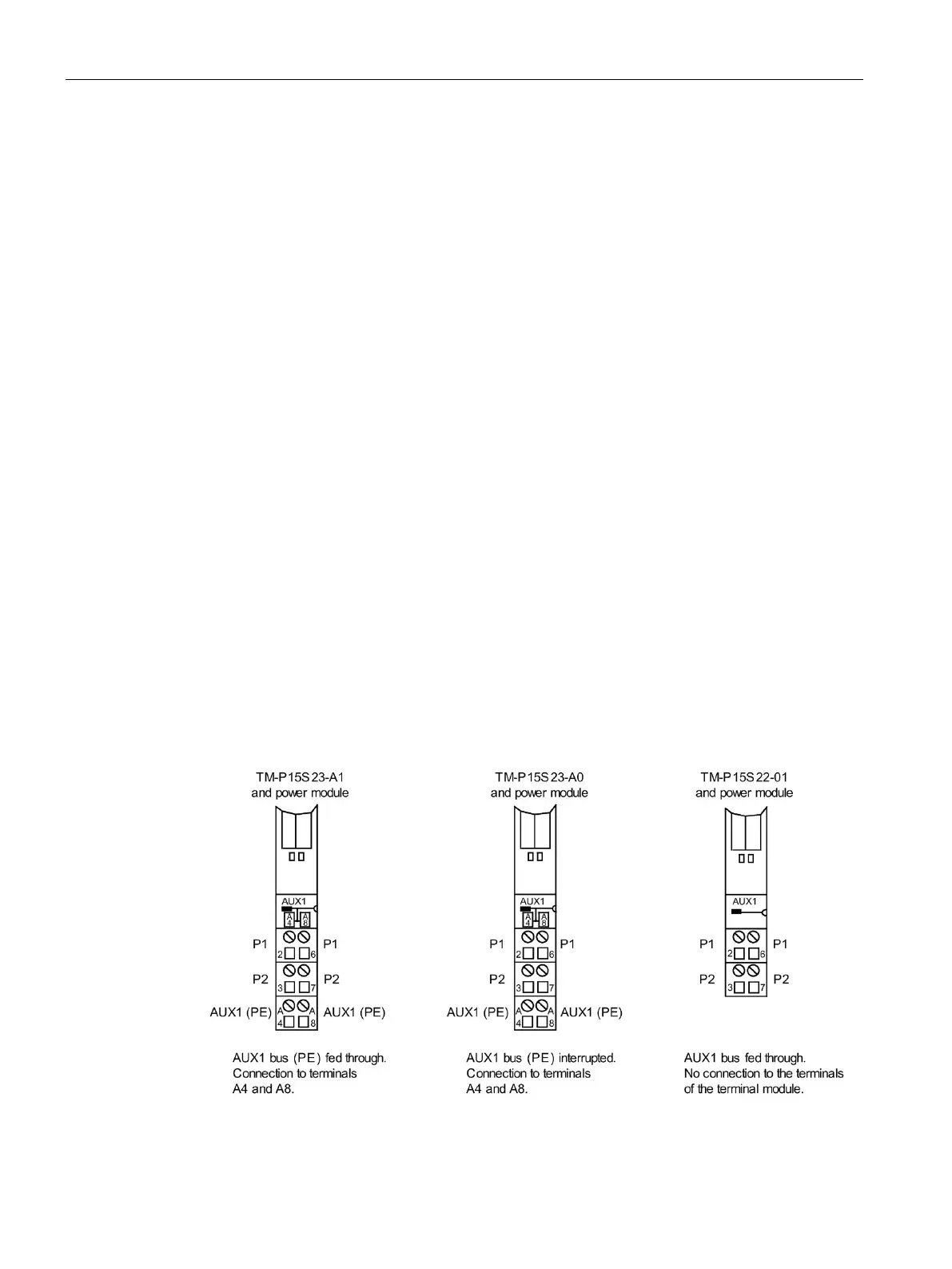

The following diagram illustrates wiring terminal modules for power modules:
