Installation and wiring
3.9 Wiring the ET 200S
EIP-200S Ethernet/IP Adapter Distributed I/O System
System Manual, 06/2018, A5E44345053-AB
71
Removing any remains of the conductor (only if necessary)
To remove any remains of the conductor (insulation), you can uninstall the locking
mechanism from the terminal module (see Step 3). To do this, the locking mechanism must
be open (upper position). You can only insert the locking mechanism in the upper position
(see Step 4).
Follow these steps to remove conductor material:
1. Insert the screwdriver in the opening below the locking mechanism (the tip of the
screwdriver is on the lip of the locking mechanism).
2. Press the screwdriver downwards to lever the locking mechanism out of the terminal
module.
3. Remove the locking mechanism from the terminal module. Remove any remains of the
conductor from the locking mechanism.
4. Use your fingers to press the locking mechanism back into the opening. Important: Make
sure the locking mechanism is inserted in the correct position, otherwise you can damage
the clamping unit.

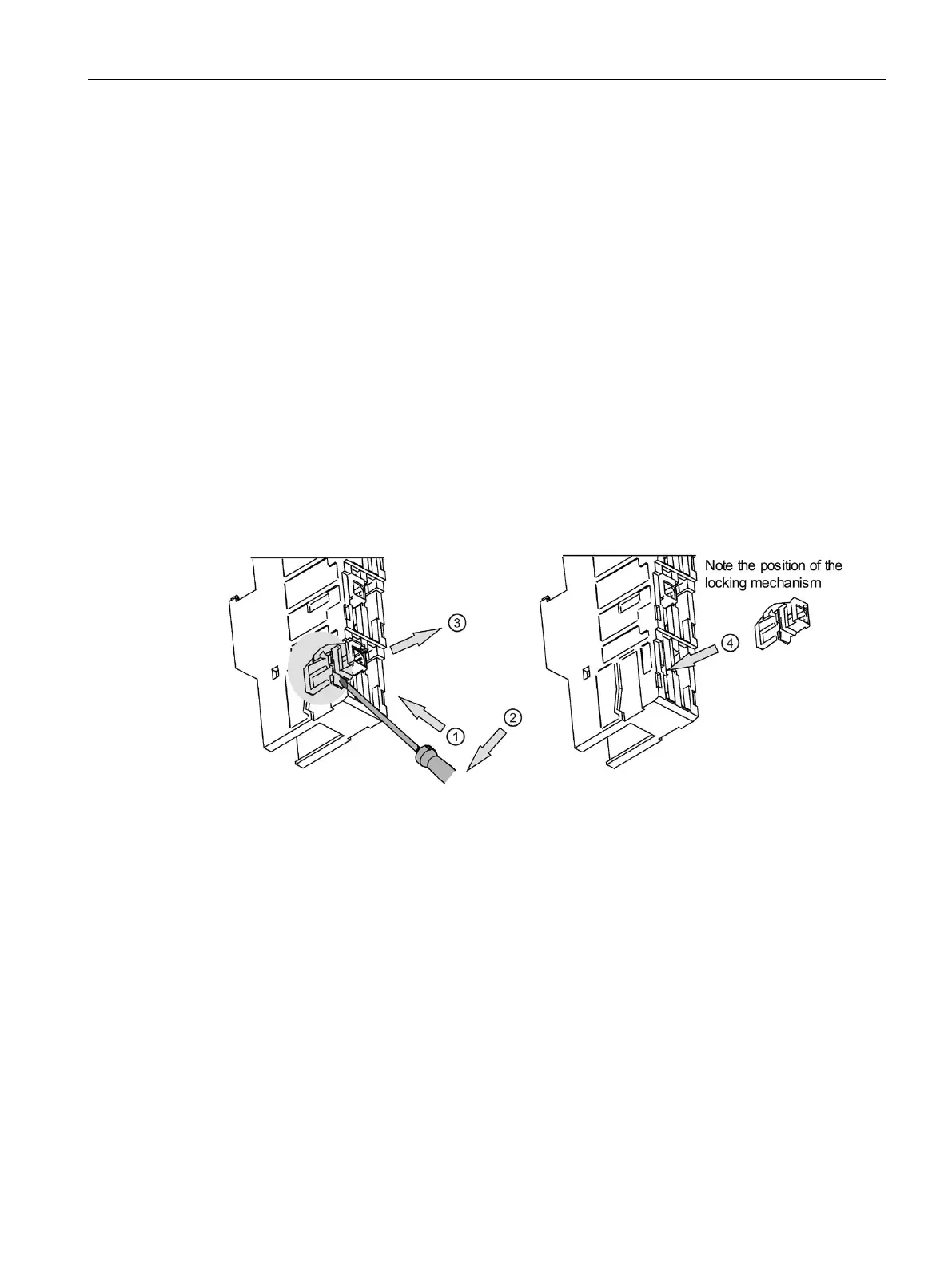

The illustration that follows shows removal of the locking mechanism from the terminal
module:
