Siemens SIMATIC S7 EIP-200S - Wiring a Terminal Module with Fast Connect

Installation and wiring
3.9 Wiring the ET 200S
EIP-200S Ethernet/IP Adapter Distributed I/O System
68 System Manual, 06/2018, A5E44345053-AB
3.9.4
Wiring a terminal module with Fast Connect
Features
● In the case of terminal modules with Fast Connect, the individual wires are attached using
a quick connection method that requires no stripping.
● Fast Connect is a connection method that requires no preparation - the conductor does
not have to be stripped.
● Each terminal of the terminal module with Fast Connect has a test opening (for
measuring the voltage, for example). The test opening is suitable for test probes with a
maximum diameter of ∅ 1.5 mm.
● Wire end ferrules are not permitted.

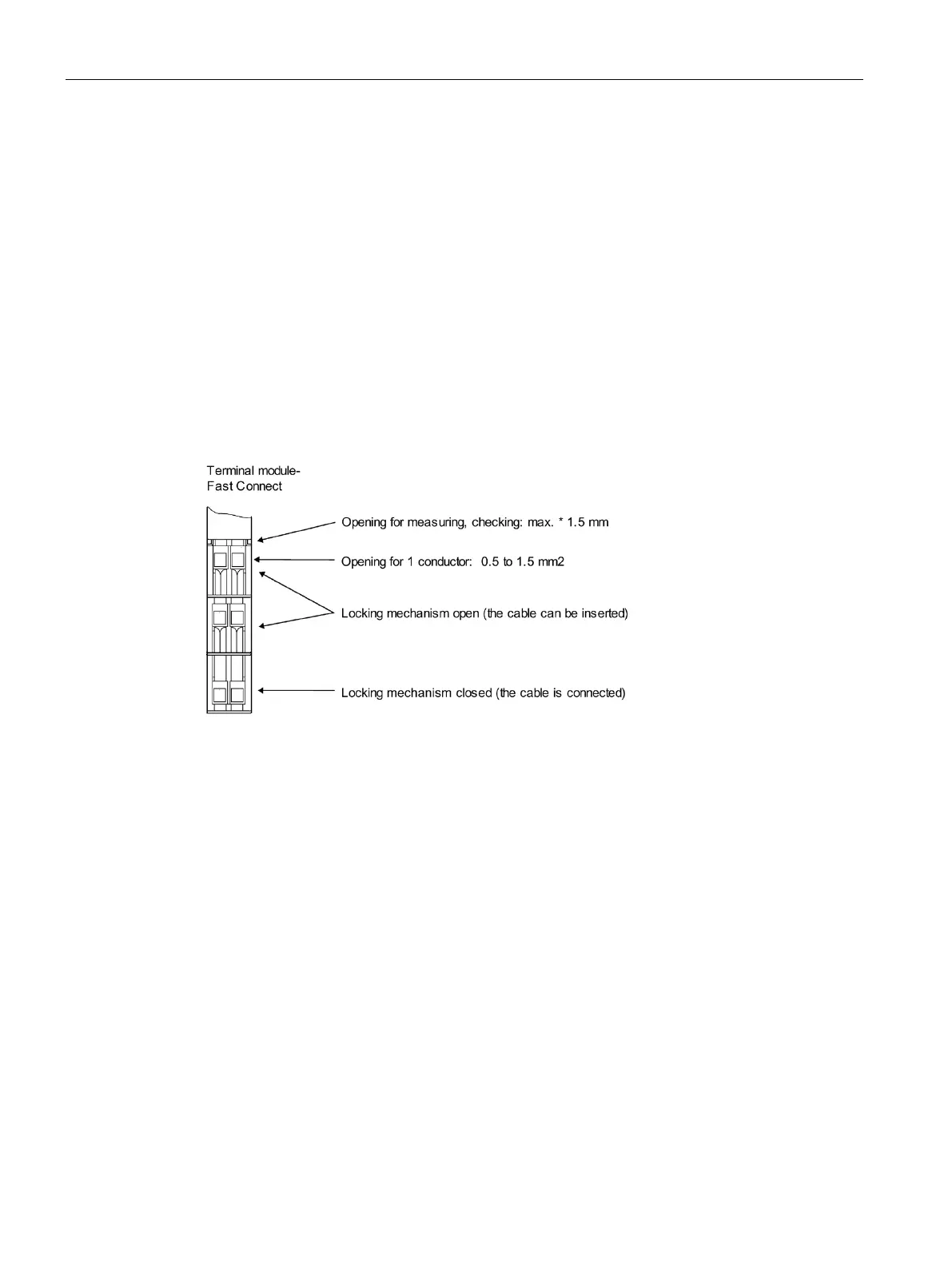

Following is a block diagram of the terminal module with Fast Connect:
Prerequisites
Adhere to the wiring rules.
Tool required
3 mm screwdriver
Connectable cables
You can connect rigid and flexible cables with PVC insulation with a conductor cross-section
of 0.5 mm
2
to 1.5 mm
2
(maximum external diameter 3.2 mm). If the cross-section of the
conductors is the same, they can be wired 50 times.
Cables and connections complying with UL
: Wiring range for insulating piercing connection:
22 - 16 AWG solid/stranded PVC insulated conductors, UL style 1015 only.
