Installation and wiring
3.9 Wiring the ET 200S
EIP-200S Ethernet/IP Adapter Distributed I/O System
System Manual, 06/2018, A5E44345053-AB
69
Wiring terminal modules with Fast Connect
1. Insert the unstripped cable in the round opening until it stops (the insulation and
conductor must form a flat surface).
2. Insert the screwdriver into the opening above the locking mechanism until it stops.
3. Press the screwdriver downward until the locking mechanism reaches the end.
Result: The cable is connected.

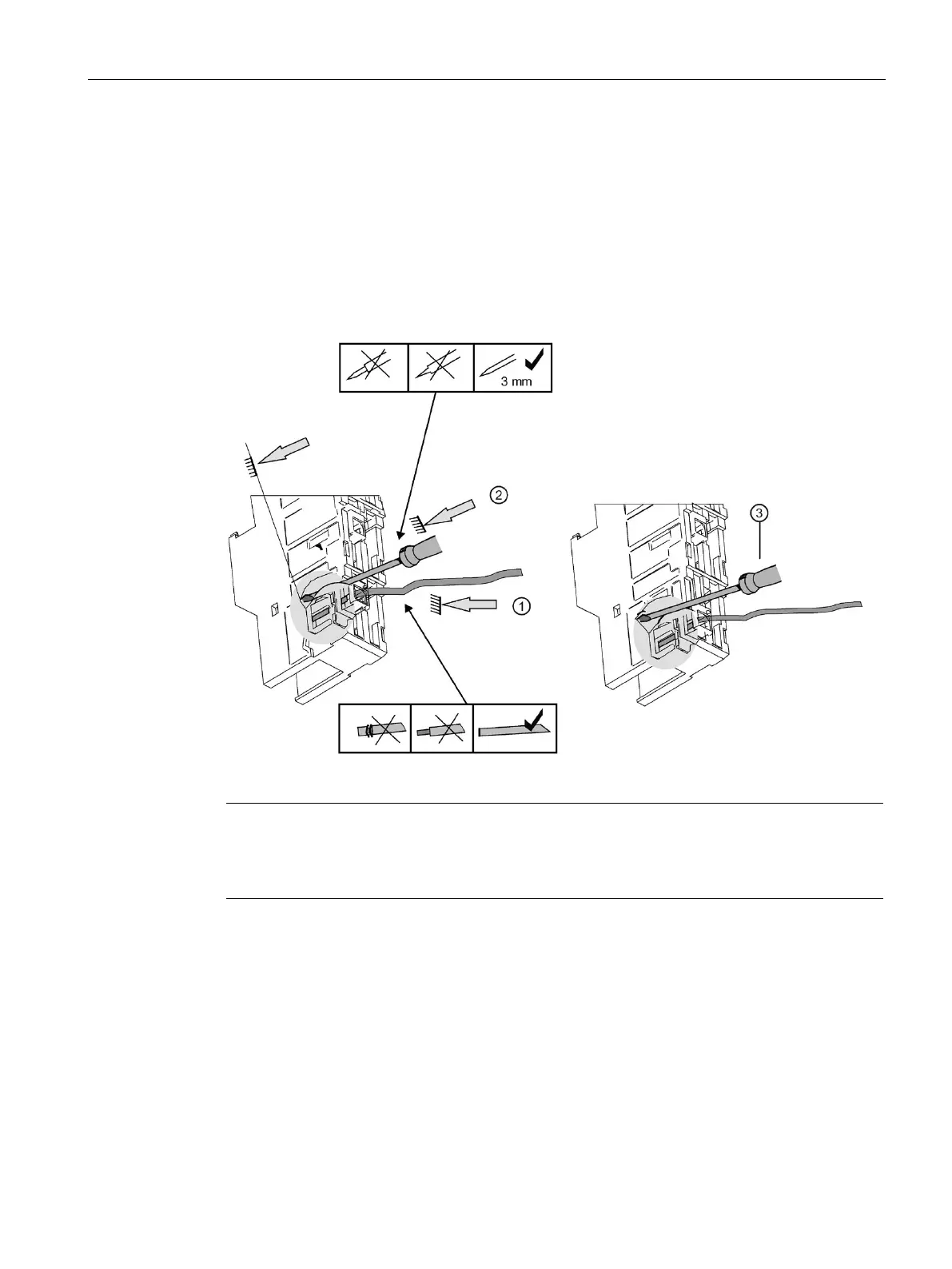

The illustration that follows shows how to wire terminal modules with Fast Connect:
Note
If you want to reconnect a cable that has alr
eady been connected, you must cut the end of
the wire to remove the pierced insulation so that good contact will be made when the wire is
reinserted.
