Installation and wiring
3.8 Electrical design of the ET 200S
EIP-200S Ethernet/IP Adapter Distributed I/O System
64 System Manual, 06/2018, A5E44345053-AB
Electrical design of the ET 200S
Isolation between:
The ET 200S provides isolation between the following components:
● The load circuits/process and all other circuit components of the ET 200S
● The interface in the interface module and all other circuit components

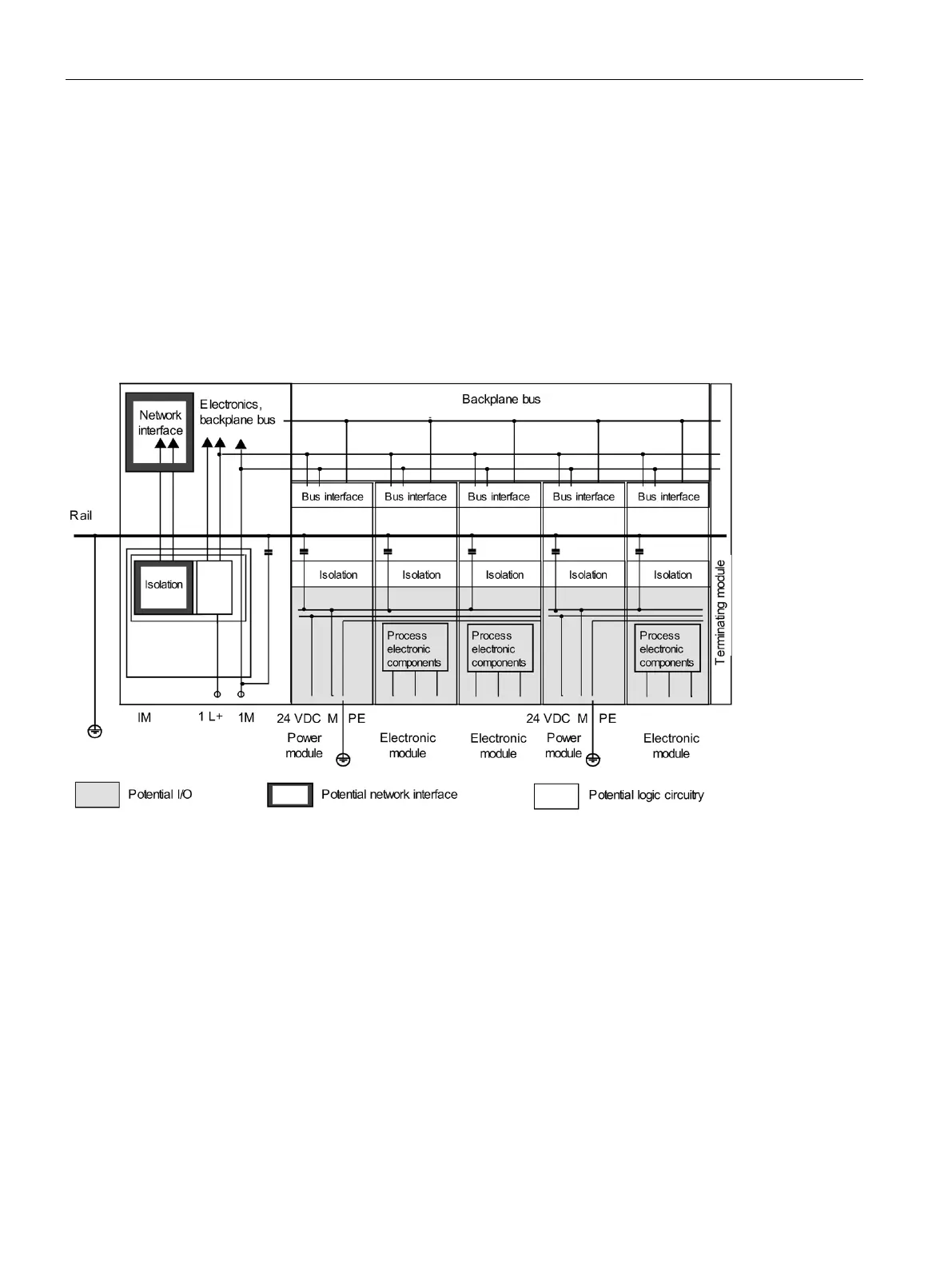

The following illustration shows the potentials of the ET 200S. Only the most important
components are shown:
