Installation and wiring
3.9 Wiring the ET 200S
EIP-200S Ethernet/IP Adapter Distributed I/O System
System Manual, 06/2018, A5E44345053-AB
73
Wiring terminal modules for digital, analog, and process-related modules
The terminal assignment of the terminal module depends on which electronic module is
inserted.

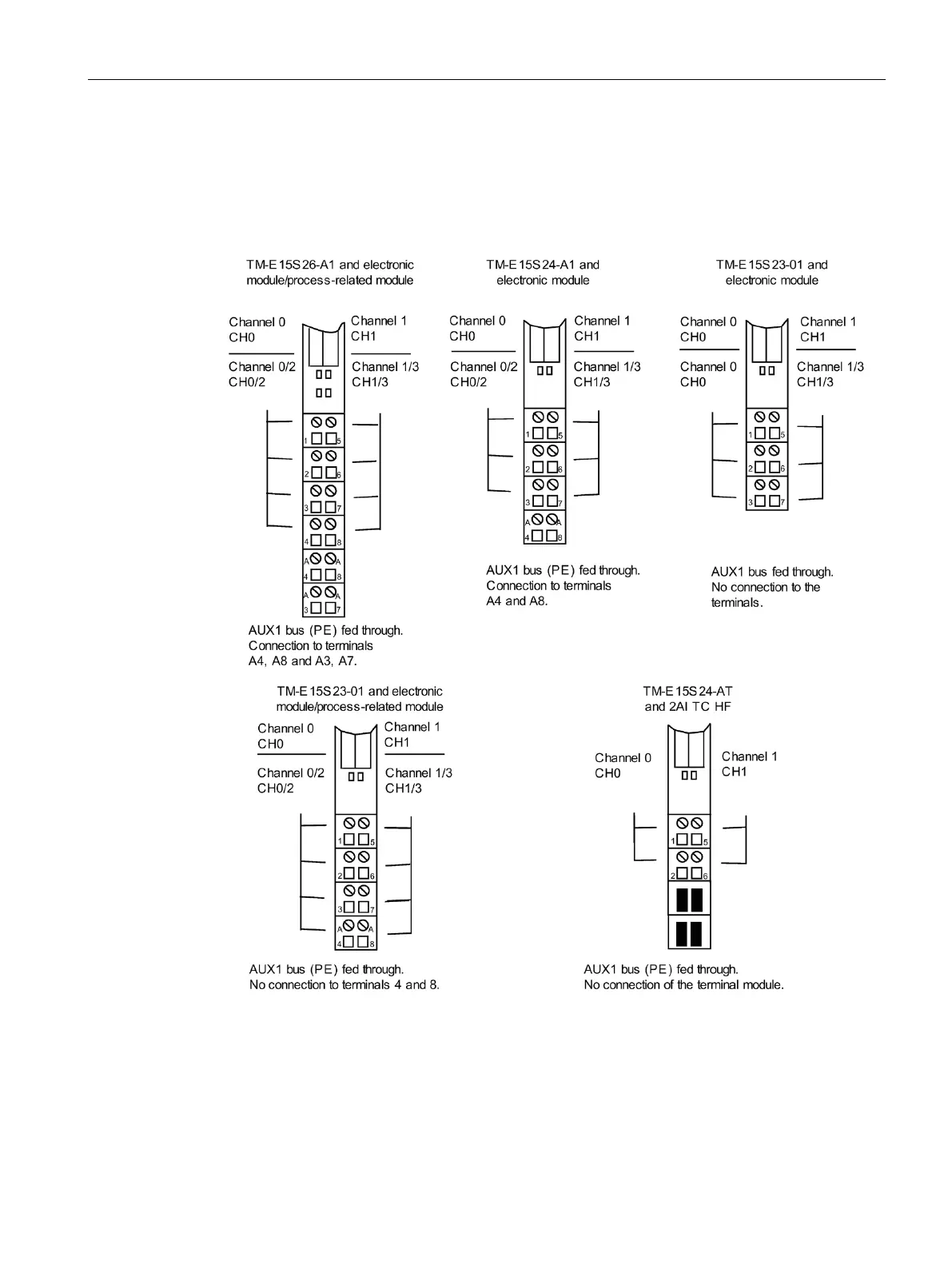

The following diagram illustrates wiring terminal modules for electronic modules:
