Product overview
1.3 The EIP-200S Ethernet/IP Adapter
EIP-200S Ethernet/IP Adapter Distributed I/O System
12 System Manual, 06/2018, A5E44345053-AB

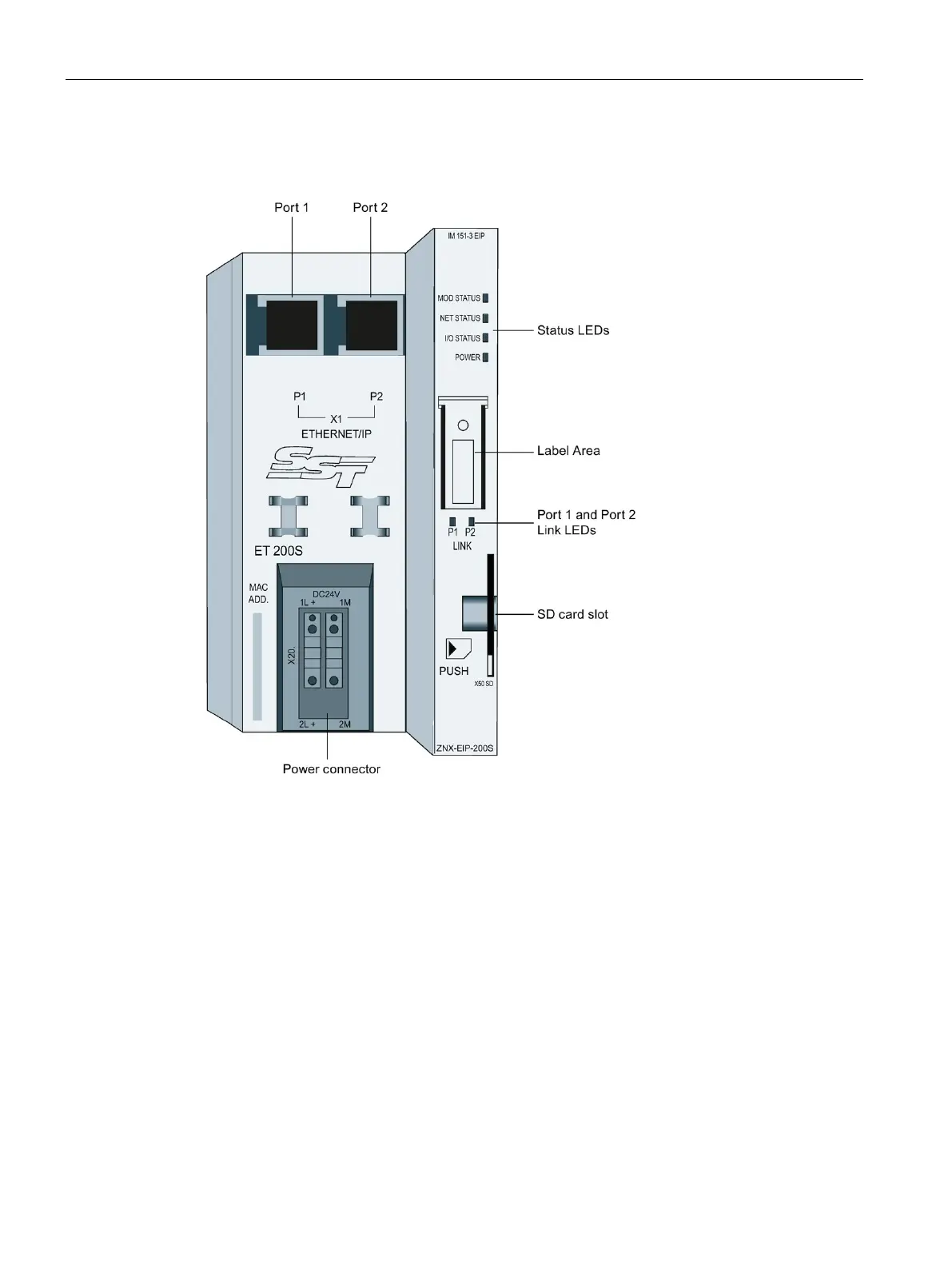

The following illustration shows the hardware features of the EIP-200S Ethernet/IP Adapter
module:
24 VDC terminals
The 24 VDC Quick Release terminal connector on the front of the EIP-200S Ethernet/IP
Adapter module provides logic power for the adapter module itself.
I/O features
The EIP-200S Ethernet/IP Adapter provides the following I/O features:
● Provides support for most ET 200S modules
● Supports up to 63 modules per EIP-200S Ethernet/IP Adapter module
● Supports electronic module parameterization
● Supports electronic module diagnostics

Siemens SIMATIC S7 EIP-200S Specifications

General

Brand	Siemens
Model	SIMATIC S7 EIP-200S
Category	I/O Systems
Language	English
