Installation and wiring
3.7 Operating the ET 200S on a grounded supply
EIP-200S Ethernet/IP Adapter Distributed I/O System
62 System Manual, 06/2018, A5E44345053-AB
Overall configuration of the ET 200S

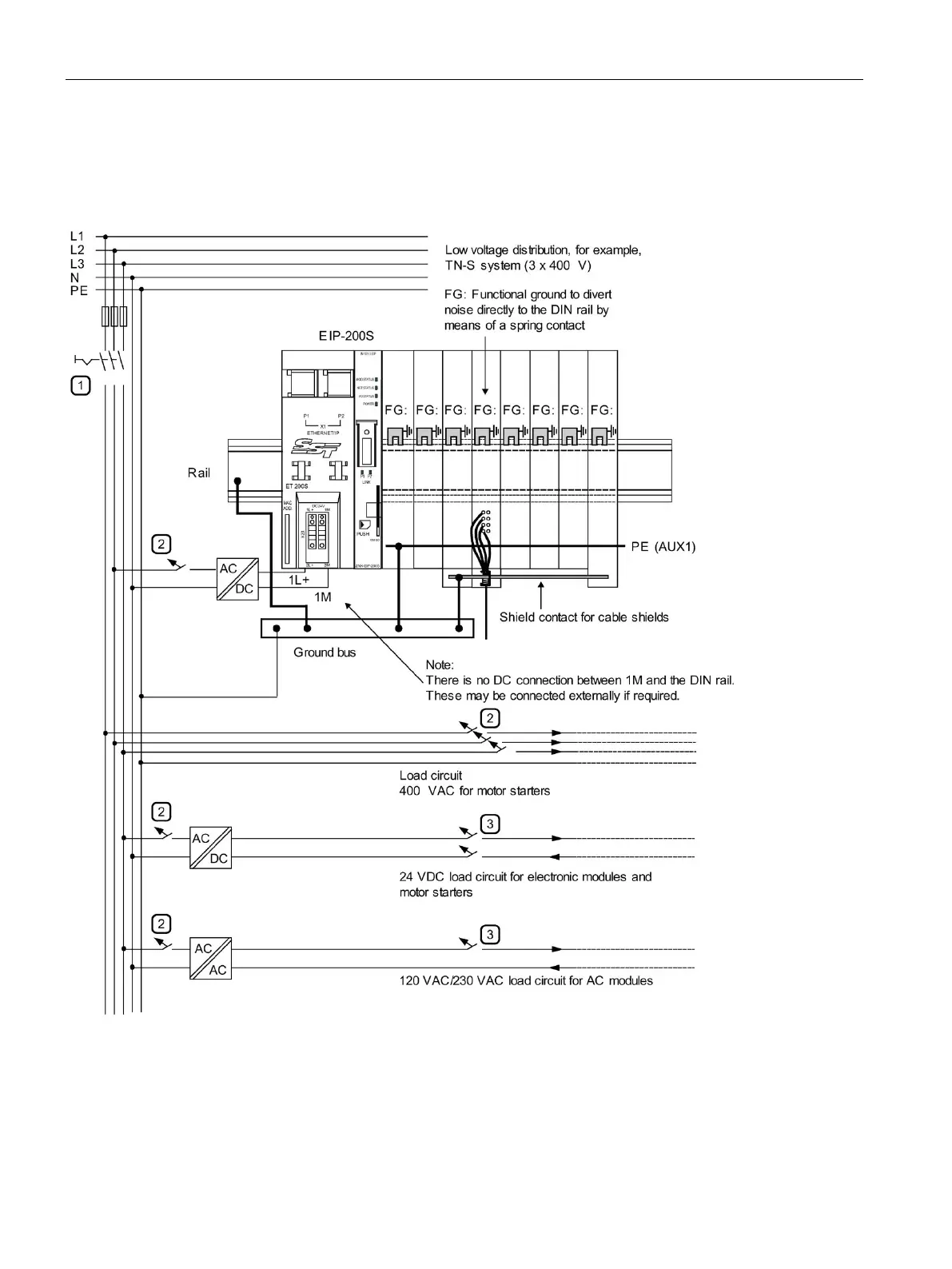

The following illustration shows the overall configuration of the ET 200S distributed I/O
system (load voltage supply and grounding concept) with supply from a TN-S system.
