Siemens SIMATIC S7 EIP-200S - Page 75

Installation and wiring
3.9 Wiring the ET 200S
EIP-200S Ethernet/IP Adapter Distributed I/O System
System Manual, 06/2018, A5E44345053-AB
75

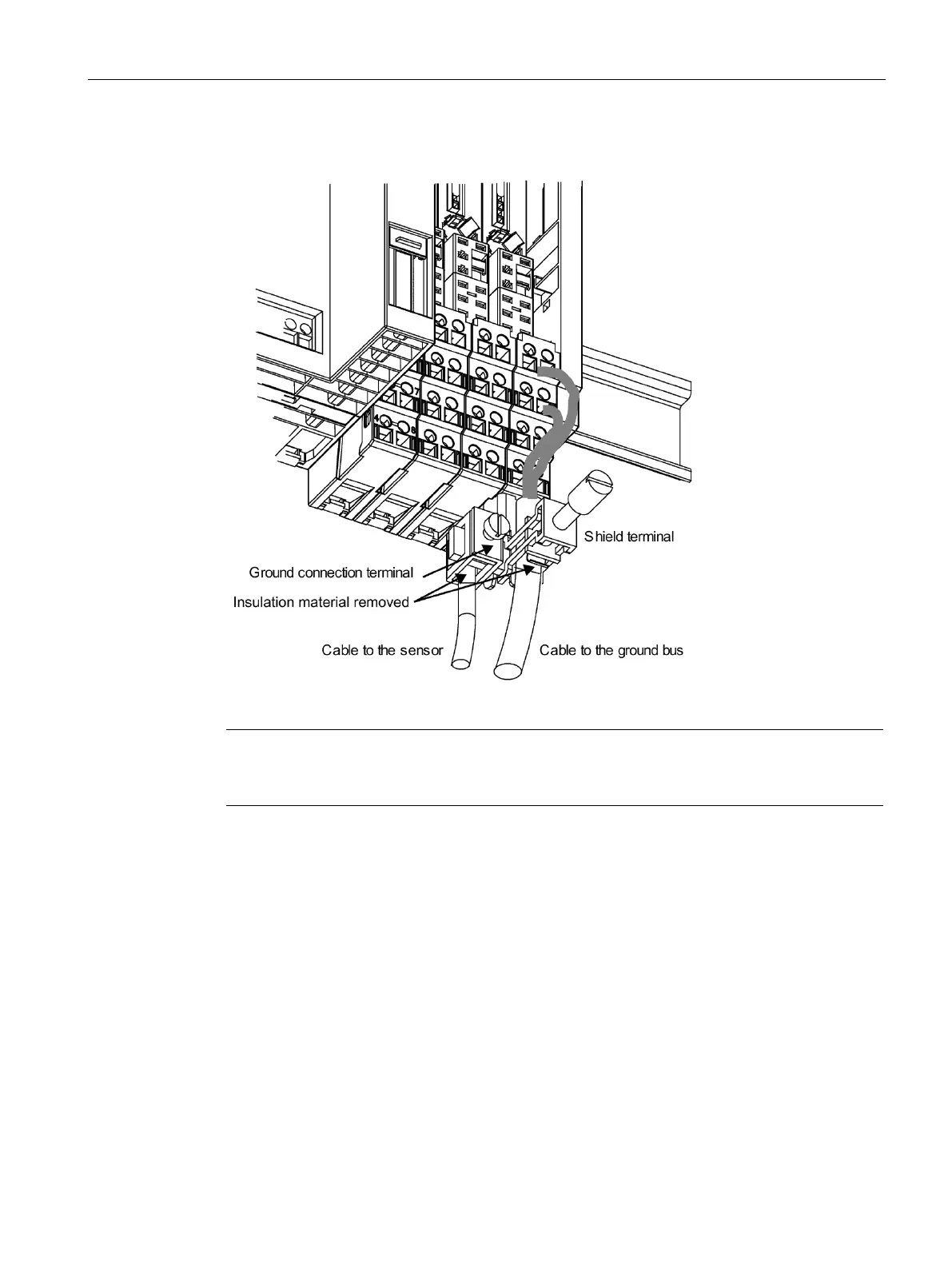

The following diagram illustrates connecting cable shields:
Note
To stabilize the shield contact, you must mount and screw in at least one shield terminal over
the shield conta
ct element.
