Product overview
1.2 What is the ET 200S distributed I/O system?
EIP-200S Ethernet/IP Adapter Distributed I/O System
8 System Manual, 06/2018, A5E44345053-AB
View

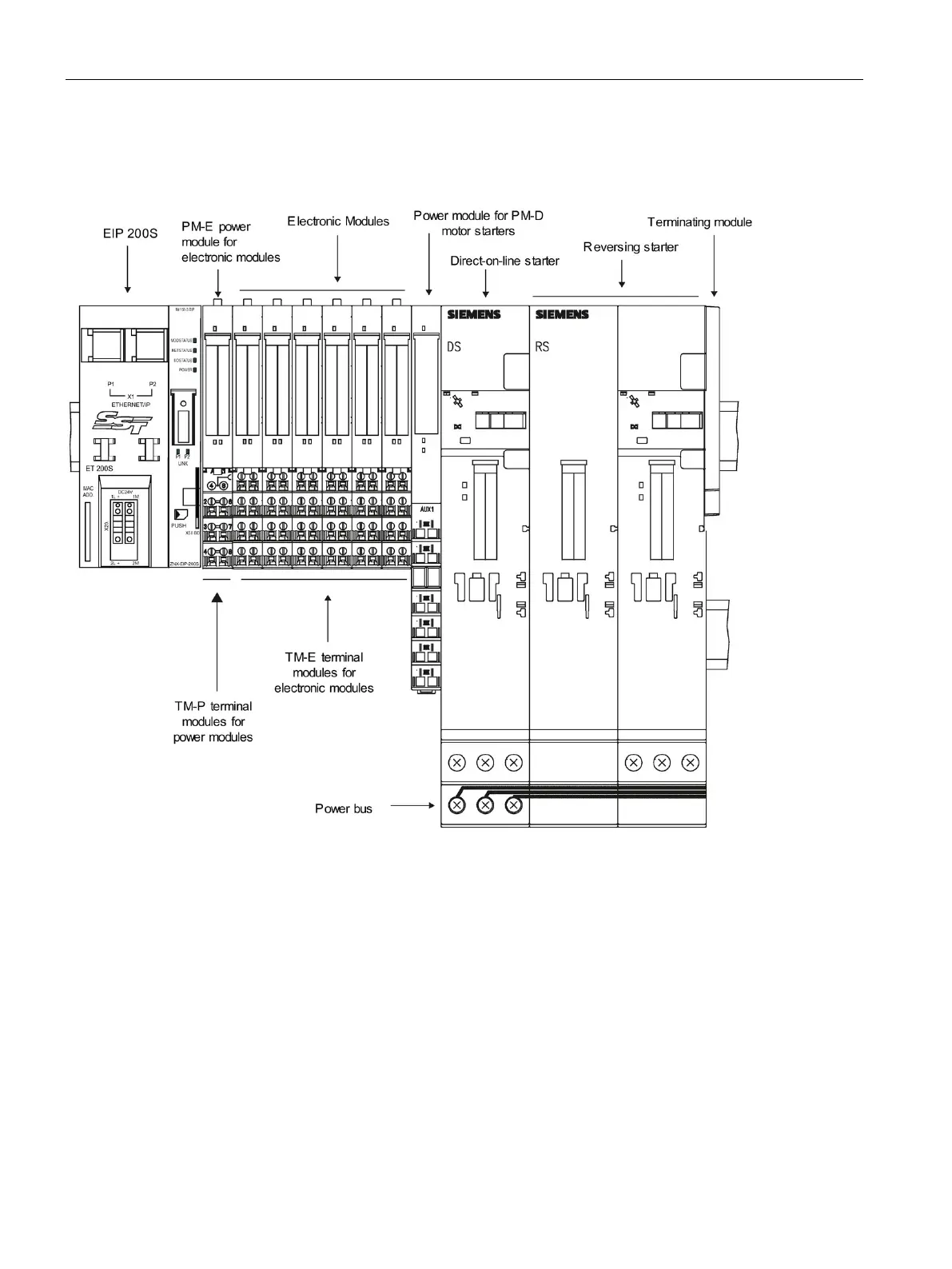

The illustration below shows an example of an ET 200S distributed I/O system configuration:
