Siemens SIMOCODE pro V MR

Mounting, wiring, connecting, system interfaces, configuration guidelines
12.2 Wiring, connecting
SIMOCODE pro
198 System Manual, 05/2019, A5E40507475002A/RS-AD/004

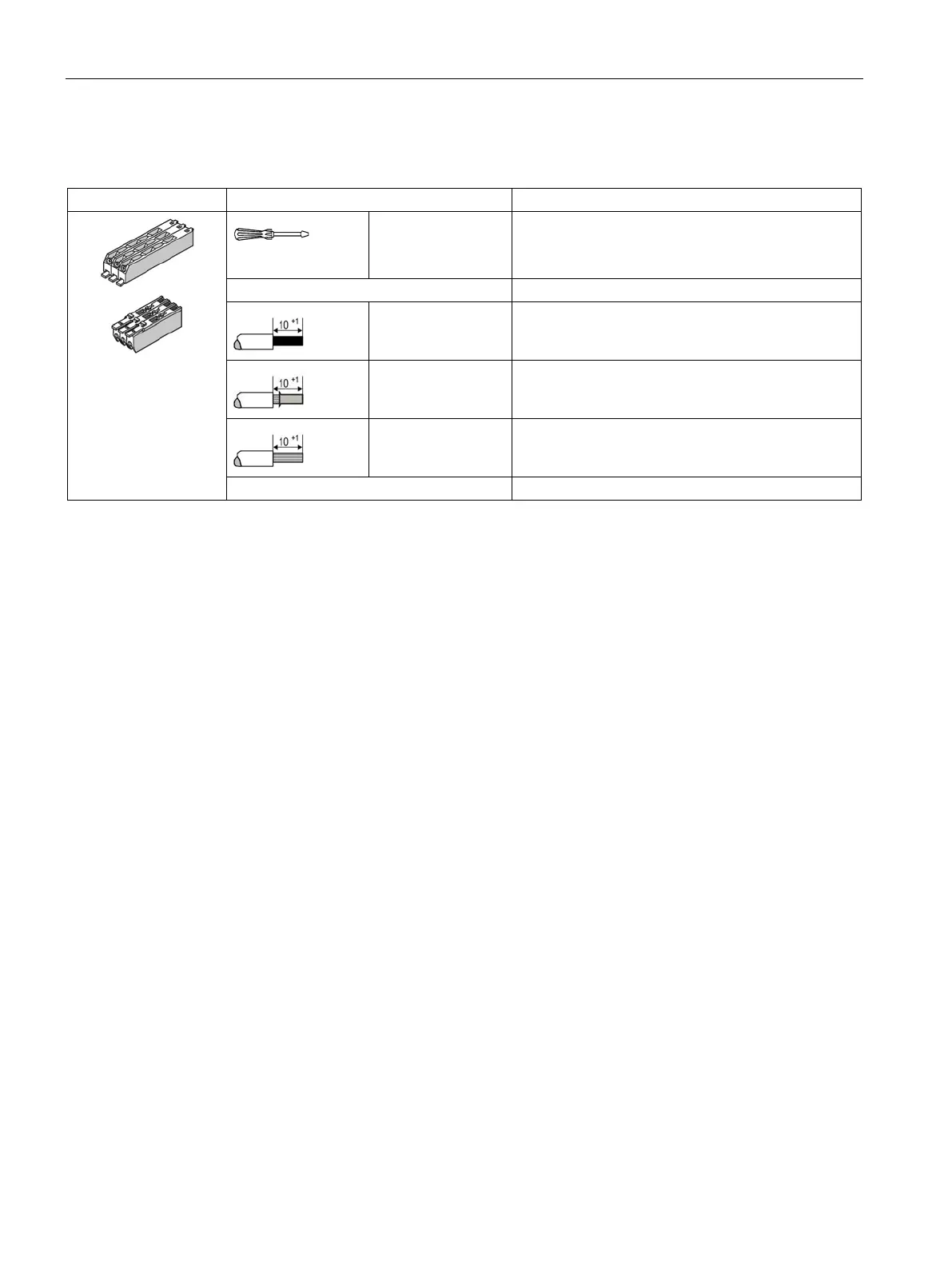

Table 12- 4 Conductor cross sections, stripped lengths, and tightening torques of the cables for the basic unit
SIMOCODE pro S
Removable terminals
Screwdriver
Tightening torque
PZ1 / Ø 4.5 mm TORQUE:
5.2 to 7.0 lb.in
0.6 to 0.8 Nm
Stripped lengths
Conductor cross section
Solid 2x 0.5 to 1.5 mm
2
/ 1x 0.5 to 2.5 mm
2
2x AWG 20 to 16 / 1x AWG 20 to 14
Finely stranded with
end sleeve
2x 0.5 to 1.0 mm
2
/ 1x 0.5 to 2.5 mm
2
Finely stranded
without end sleeve
-
PROFIBUS 2x 0.34 mm
2
/ 1x 0.34 mm
2
