Siemens SIMOCODE pro V MR

Mounting, wiring, connecting, system interfaces, configuration guidelines
12.2 Wiring, connecting
SIMOCODE pro
System Manual, 05/2019, A5E40507475002A/RS-AD/004
199

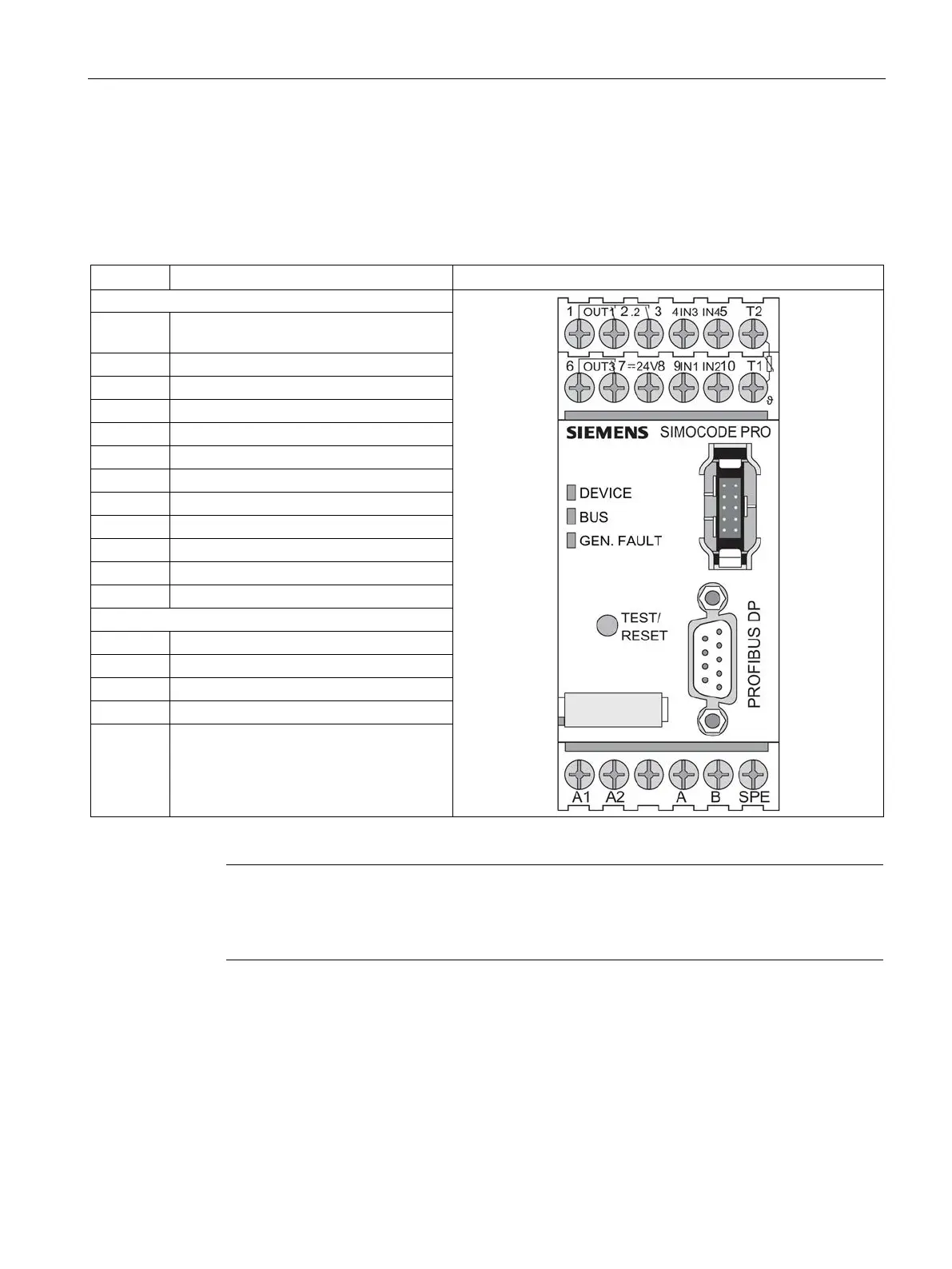

Pin assignment for SIMOCODE pro C / pro V PB basic units
The following table show the assignment of the removable terminals of the
SIMOCODE pro C/pro V PB basic units:
Table 12- 5 Assignment of the removable terminals, SIMOCODE pro C / pro V PB basic units
Terminal
Assignment
Upper terminals
1 Common potential for relay outputs 1
and 2
2
Relay output OUT1
3 Relay output OUT2
4
Digital input IN3
5
Digital input IN4
T2
Thermistor connection (binary PTC)
6
Relay output OUT3
7
Relay output OUT3
8
24 V DC only for IN1 to IN4
9
Digital input IN1
10
Digital input IN2
T1
Thermistor connection (binary PTC)
Lower terminals
A1
Supply voltage terminal 1
A2
Supply voltage terminal 2
A
PROFIBUS DP terminal A
B
PROFIBUS DP terminal B
SPE
1)
System shielding
1)
Note
Connect SIMOCODE
pro via terminal SPE with the maximum possible cross-section and
with as short a cable as possibl
e to the functional ground of the control cabinet,
e.g. to the grounded mounting plate of the control cabinet.
