Siemens SIMOCODE pro V MR

Mounting, wiring, connecting, system interfaces, configuration guidelines
12.2 Wiring, connecting
SIMOCODE pro
202 System Manual, 05/2019, A5E40507475002A/RS-AD/004

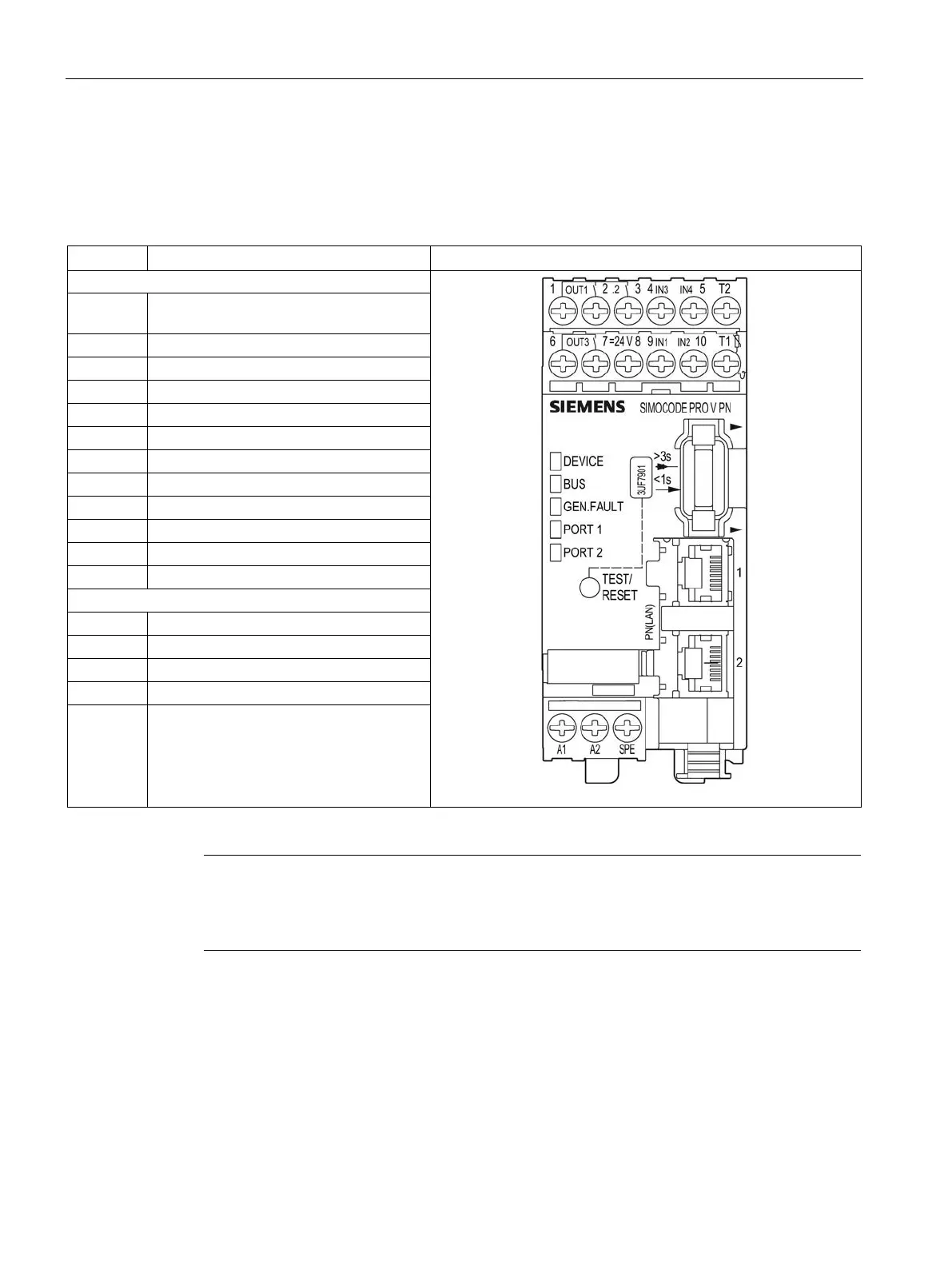

Pin assignment for SIMOCODE pro V PN / EIP basic units
The following table shows the pin assignment of the removable terminals:
Table 12- 8 Pin assignments of the removable terminals of the basic unit
Terminal
Assignment
Upper terminals
1 Common potential for relay outputs 1
and 2
2
Relay output OUT1
3 Relay output OUT2
4
Digital input IN3
5
Digital input IN4
T2
Thermistor connection (binary PTC)
6
Relay output OUT3
7
Relay output OUT3
8
24 V DC only for IN1 to IN4
9
Digital input IN1
10
Digital input IN2
T1
Thermistor connection (binary PTC)
Lower terminals
A1
Supply voltage terminal 1
A2
Supply voltage terminal 2
PORT 1
PROFINET connection 1
PORT 2
PROFINET connection 2
SPE
1)
System shielding
1)
Note
Connect SIMOCODE
pro via terminal SPE with the maximum possible cross-section and
with as short a cable as possible to the functional
ground of the control cabinet, e.g. to the
grounded mounting plate of the control cabinet.
