Pin assignment for SIMOCODE pro V PN GP basic unit
The following table shows the pin assignment of the removable terminals:

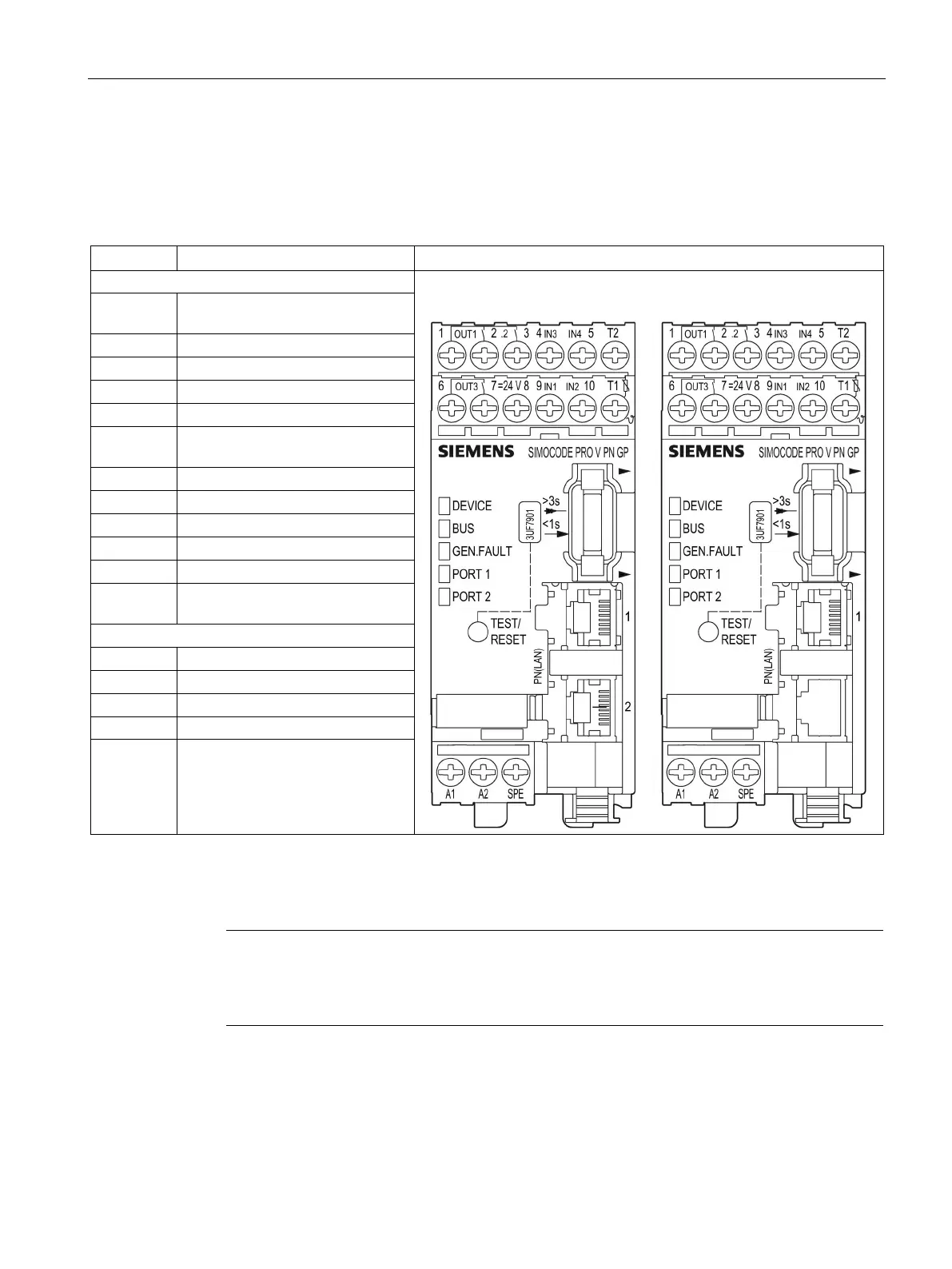

Table 12- 7 Pin assignments of the removable terminals of the basic unit
Terminal
Assignment
Upper terminals
1 Common potential for relay
outputs 1 and 2
2
Relay output OUT1
3 Relay output OUT2
4
Digital input IN3
5
Digital input IN4
T2 Thermistor connection
(binary PTC)
6
Relay output OUT3
7
Relay output OUT3
8
24 V DC only for IN1 to IN4
9
Digital input IN1
10
Digital input IN2
T1 Thermistor connection
(binary PTC)
Lower terminals
A1
Supply voltage terminal 1
A2
Supply voltage terminal 2
PORT 1
PROFINET connection 1
PORT 2
1)
PROFINET connection 2
SPE
2))
System shielding
1) Not available for SIMOCODE pro V PN GP 3UF7011-1AB00-2 and 3UF7011-1AU00-2
basic units
2)
Note
Connect SIMOCODE
pro via terminal SPE with the maximum possible cross-section and
with as short a cable as possible to the functional ground of the control cabinet, e.g. to the
grounded mounting
plate of the control cabinet.
