Mounting, wiring, connecting, system interfaces, configuration guidelines
12.2 Wiring, connecting
SIMOCODE pro
208 System Manual, 05/2019, A5E40507475002A/RS-AD/004

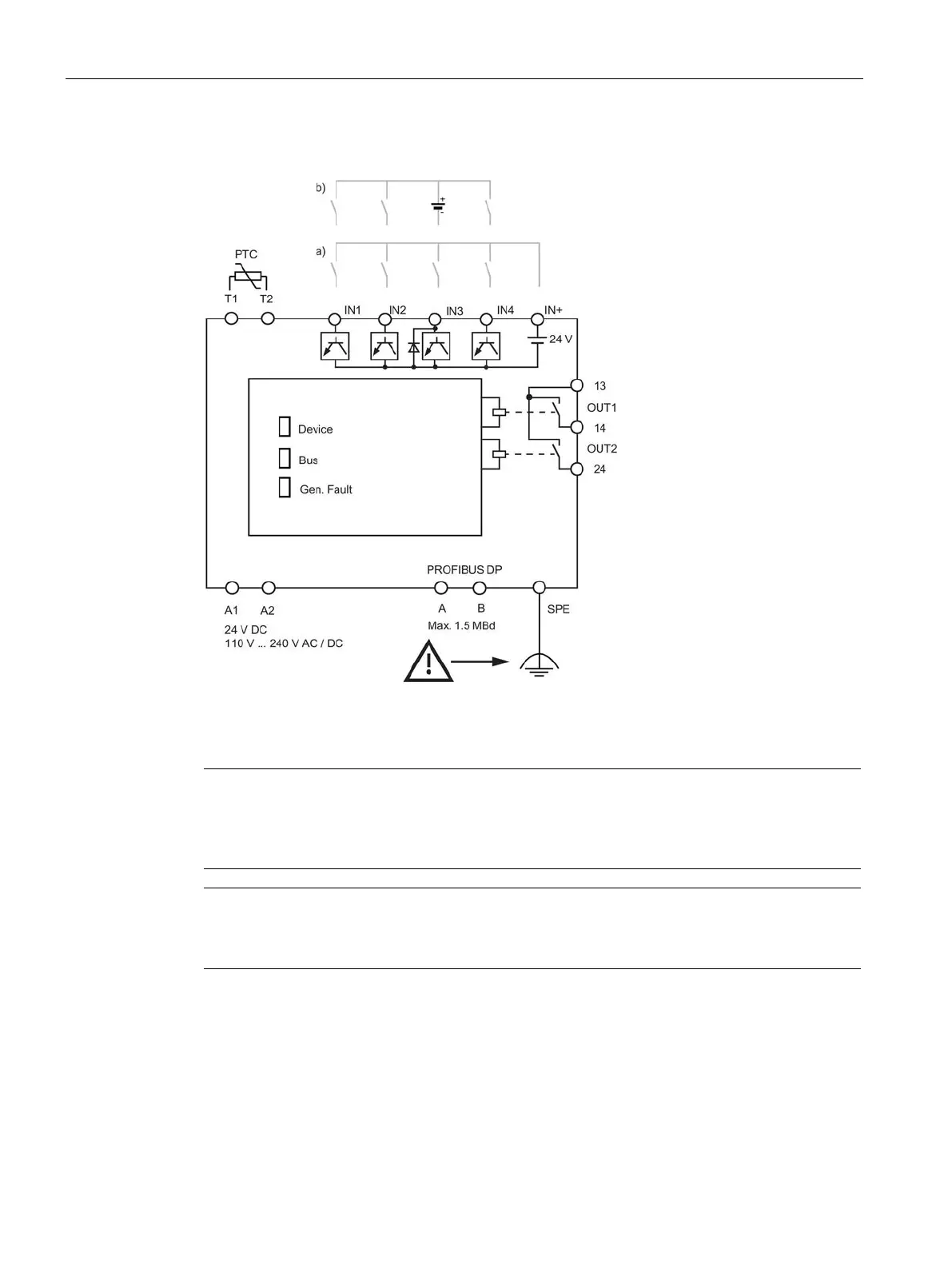

Figure 12-17 Connection example SIMOCODE pro S basic unit
Note
Only three inputs can be used
With an external 24 V DC supply, only three inputs can
be used
see "Power supply to the inputs of the basic unit" above).
Note
Baud rates PROFIBUS DP
Baud rates up to 1.5
Mbits are possible via bus terminals A/B.
